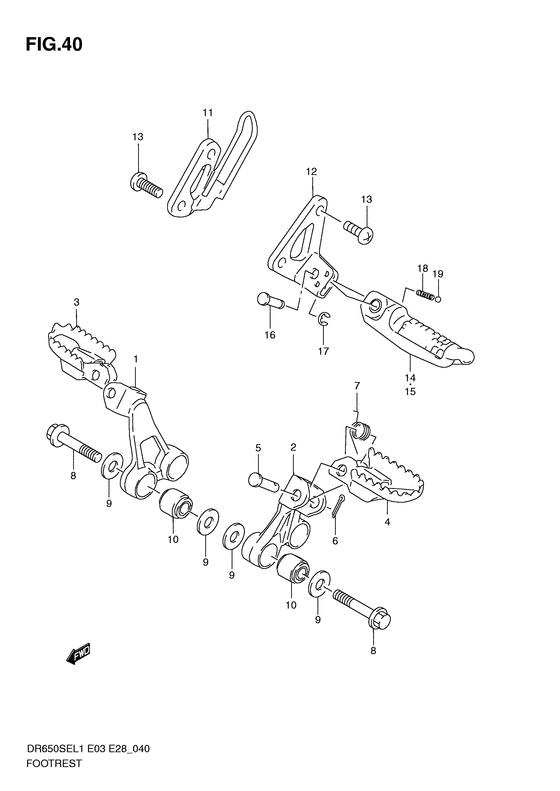

Footrest Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-32E00-000 BRACKET,FR FOOTREST,RBar, footrest rh |
43510-32E00-000 |
from US $58.88 |
||
|
2
|
2
43520-32E00-000 BRACKET,FR FOOTREST,LBar, footrest lh |
43520-32E00-000 |
from US $58.88 |
||
|
3
|
3
43550-03B00-019 FOOTREST,FR,RFootrest, front rh (black); |
43550-03B00-019 |
from US $20.61 |
||
|
4
|
4
43560-03B00-019 FOOTREST,FR,LFootrest, front lh (black); |
43560-03B00-019 |
from US $20.61 |
||
|
5
|
5
09200-10013-000 PIN |
09200-10013-000 |
from US $4.06 |
||
|
6
|
6
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
7
|
7
09448-15004-000 SPRING |
09448-15004-000 |
from US $3.57 |
||
|
8
|
8
09103-10232-000 BOLT(10X50)Bolt (10x50); |
09103-10232-000 |
from US $7.70 |
||
|
9
|
9
09160-10124-000 WASHER(10.1X23X2.3)Washer Washer (10.1x23x2.3); |
09160-10124-000 |
from US $3.71 |
||
|
10
|
10
09319-10033-000 BUSH(10.2X25X19) |
09319-10033-000 |
from US $10.22 |
||
|
11
|
11
43650-32E00-019 BRACKET,PILLION FOOT,R(BLACK)Bracket, pillion rh (black) Bracket, pillion rh (black); |
43650-32E00-019 |
from US $44.53 |
||
|
12
|
12
43750-32E00-019 BRACKET,PILLION FOOT,L(BLACK)Bracket, pillion lh (black) Bracket, pillion lh (black); |
43750-32E00-019 |
from US $37.17 |
||
|
13
|
13
09106-08161-000 BOLT(8X20)Bolt, panel (8x18) Bolt (8x20); |
09106-08161-000 |
from US $5.92 |
||
|
14
|
14
43610-23E00-000 BAR,PILLION FOOTREST,RBar, rh Bar, rh; |
43610-23E00-000 |
from US $29.40 |
||
|
15
|
15
43710-23E00-000 BAR,PILLION FOOTREST,LBar, lh |
43710-23E00-000 |
from US $38.64 |
||
|
16
|
16
09208-08011-000 PIN |
09208-08011-000 |
from US $4.42 |
||
|
17
|
17
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
18
|
18
09440-05005-000 SPRING |
09440-05005-000 |
from US $1.06 |
||
|
19
|
19
06111-07004-000 BALL |
06111-07004-000 |
from US $0.76 |
