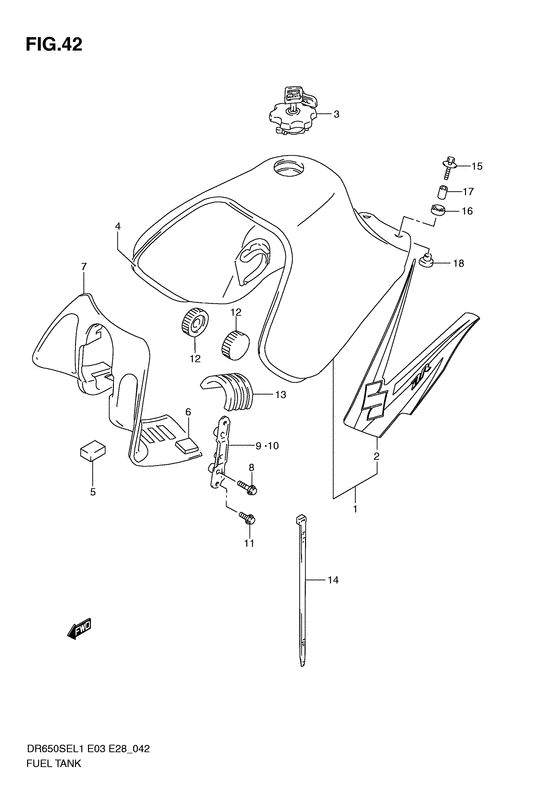

Fuel tank (Dr650sel1 e3) Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-32ER0-3WX
TANK ASSY,FUEL(BLACK)
Tank assy, fuel (black); For 019 |
44100-32ER0-3WX |
— | ||
|
1
|
1
44100-32ER0-5UX TANK ASSY,FUEL(WHITE)Tank assy, fuel (white); For 30h |
44100-32ER0-5UX |
from US $834.24 |
||
|
2
|
2
68110-32EC0-HLT TAPE SET,FUEL TANKFor 3wx |
68110-32EC0-HLT |
from US $117.76 |
||
|
2
|
2
68110-32EC0-HLU TAPE SET,FUEL TANKFor 5ux |
68110-32EC0-HLU |
from US $97.89 |
||
|
3
|
3
44200-13830-000
CAP SET,FUEL TANK
|
44200-13830-000 |
— | ||
| replacement | |||||
|
3
|
3
44200-13831-000 Cap Set,fuel Tank Filler |
44200-13831-000 |
from US $93.47 |
||
|
4
|
4
68241-32E00-000 MOLDING,FUEL TANKMolding |
68241-32E00-000 |
from US $26.50 |
||
|
5
|
5
51827-01A00-000 CUSHION,HEAD LAMP HOUSING |
51827-01A00-000 |
from US $5.02 |
||
|
6
|
6
44831-17B00-000 CUSHION,OIL TANK UPRCushion, tank cover; |
44831-17B00-000 |
from US $3.20 |
||
|
7
|
7
44271-32E00-000 COVER,FUEL TANK FRCover, front |
44271-32E00-000 |
from US $27.42 |
||
|
8
|
8
09116-06210-000 BOLT(6X12)Bolt (6x12); |
09116-06210-000 |
from US $3.37 |
||
|
9
|
9
44280-32E00-000 BRACKET,FUEL TANK COVER,RBracket, front cover rh |
44280-32E00-000 |
from US $11.52 |
||
|
10
|
10
44290-32E00-000 BRACKET,FUEL TANK COVER,LBracket, front cover lh |
44290-32E00-000 |
from US $11.52 |
||
|
11
|
11
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
12
|
12
44511-12D00-000 CUSHION,FUEL TANK FRCushion, front |
44511-12D00-000 |
from US $6.69 |
||
|
13
|
13
44541-13E00-000 CUSHION,FUEL TANK UPRCushion, tank upper Cushion, upper rear; |
44541-13E00-000 |
from US $8.13 |
||
|
14
|
14
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp (l:248); |
09407-25402-000 |
from US $2.24 |
||
|
15
|
15
09116-06214-000 BOLT(6X30)Bolt, rear Bolt (6x30); |
09116-06214-000 |
from US $1.38 |
||
|
16
|
16
09320-14022-000 CUSHION |
09320-14022-000 |
from US $1.44 |
||
|
17
|
17
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) Spacer (6.5x9x18); |
09180-06271-000 |
from US $1.51 |
||
|
18
|
18
09320-10020-000
CUSHION
|
09320-10020-000 |
— | ||
| replacement | |||||
|
18
|
18
09320-10071-000 Cushion(9X24X18) |
09320-10071-000 |
from US $1.98 |
||
