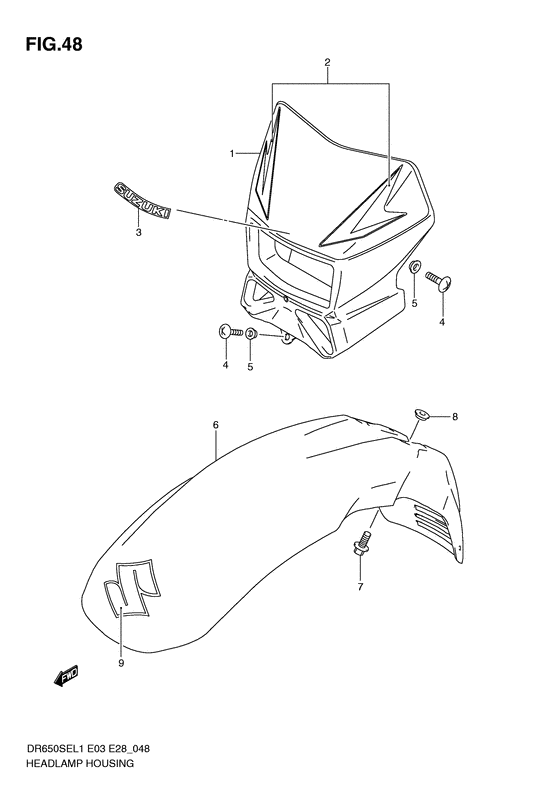

Headlamp housing Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-29F50-019 Cover,headlamp (Black)Cover, head lamp (black); |
51811-29F50-019 |
from US $37.84 |
||
|
1
|
1
51811-29F50-30H Cover,headlampCover, head lamp (white); |
51811-29F50-30H |
from US $59.98 |
||
|
2
|
2
68720-32E00-HLV
TAPE SET,HEADLAMP HOUSING
For 019 |
68720-32E00-HLV |
— | ||
| replacement | |||||
|
2
|
2
68720-32E01-HLV Tape Set,headlamp HsgFor 019 |
68720-32E01-HLV |
US $29.62 |
||
|
2
|
2
68720-32E00-HLW
TAPE SET,HEADLAMP HOUSING
For 30h |
68720-32E00-HLW |
— | ||
| replacement | |||||
|
2
|
2
68720-32E01-HLW Tape Set,headlamp HsgFor 30h |
68720-32E01-HLW |
from US $24.66 |
||
|
3
|
3
68281-01H00-YD8
EMBLEM,SUZUKI
Emblem, "suzuki" (silver); |
68281-01H00-YD8 |
— | ||
| replacement | |||||
|
3
|
3
68281-01H01-YD8 Emblem,"suzuki"Emblem, "suzuki" (silver); |
68281-01H01-YD8 |
from US $8.48 |
||
|
4
|
4
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
5
|
5
09169-06071-000 WASHERWasher, rr side Washer; |
09169-06071-000 |
from US $0.96 |
||
|
6
|
6
53111-13E00-019 FENDER,FRONT (BLACK)Fender, front (black); |
53111-13E00-019 |
from US $83.60 |
||
|
6
|
6
53111-13E00-30H FENDER,FRONT (WHITE)Fender, front (white); |
53111-13E00-30H |
from US $72 |
||
|
7
|
7
09116-06170-000 BOLT(6X16)Bolt (6x16); |
09116-06170-000 |
from US $0.80 |
||
|
8
|
8
09169-06073-000 WASHERWasher; |
09169-06073-000 |
from US $1.67 |
||
|
9
|
9
68151-07G10-YD8
EMBLEM,S
Emblem, "s" (silver); |
68151-07G10-YD8 |
— | ||
| replacement | |||||
|
9
|
9
68151-07G11-YD8 Emblem,s(Silver)Emblem, "s" (silver); |
68151-07G11-YD8 |
US $13.31 |
||
