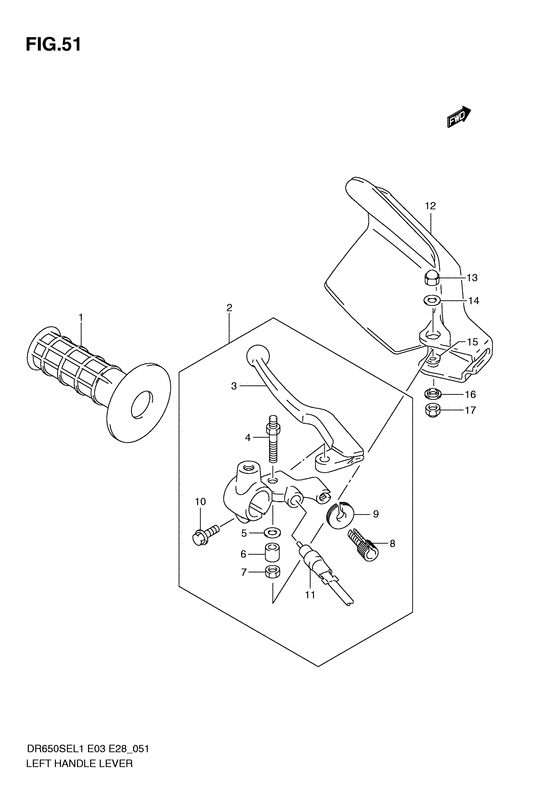

Left handle lever Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-12D00-000 GRIP,LGrip, lh |
57211-12D00-000 |
from US $10.24 |
||
|
2
|
2
57500-12E30-000
Lever assy,clutch
|
57500-12E30-000 |
— | ||
| replacement | |||||
|
2
|
2
57500-12E31-000 Lever assy,clutch |
57500-12E31-000 |
from US $102.98 |
||
|
3
|
3
57421-12E30-000 LEVER,CLUTCH |
57421-12E30-000 |
US $42.98 |
||
|
4
|
4
57531-12E30-000 BOLT,PIVOT |
57531-12E30-000 |
US $37.83 |
||
|
5
|
5
57533-12E30-000 WASHER |
57533-12E30-000 |
from US $4.86 |
||
|
6
|
6
57532-12E30-000 SPACER |
57532-12E30-000 |
from US $10.67 |
||
|
7
|
7
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
8
|
8
57441-45C00-000
ADJUSTER,WIRE
Adjuster, cable; |
57441-45C00-000 |
— | ||
| replacement | |||||
|
8
|
8
57441-45C01-000 Adjuster,wireAdjuster, cable; |
57441-45C01-000 |
from US $6.88 |
||
|
9
|
9
57442-45C00-000
NUT,LOCK
Nut; |
57442-45C00-000 |
— | ||
| replacement | |||||
|
9
|
9
57442-45C01-000 Nut,lockNut; |
57442-45C01-000 |
from US $6.66 |
||
|
10
|
10
01547-0620B-000 BOLT |
01547-0620B-000 |
from US $0.76 |
||
|
11
|
11
57560-13E02-000 SWITCH ASSY,CLUTCH |
57560-13E02-000 |
from US $12.51 |
||
|
12
|
12
57541-31D20-019 COVER,KNUCKLE,LCover, knuckle lh (black); |
57541-31D20-019 |
from US $15.20 |
||
|
12
|
12
57541-31D20-30H COVER,KNUCKLE,LCover, knuckle lh (white); |
57541-31D20-30H |
from US $14.40 |
||
|
13
|
13
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
14
|
14
09160-06154-000 WASHER(6.5X20X1.6)Washer (6.5x20x1.6); |
09160-06154-000 |
from US $2.72 |
||
|
15
|
15
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer (6.5x16x1.2); |
09160-06019-000 |
from US $0.76 |
||
|
16
|
16
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
17
|
17
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
