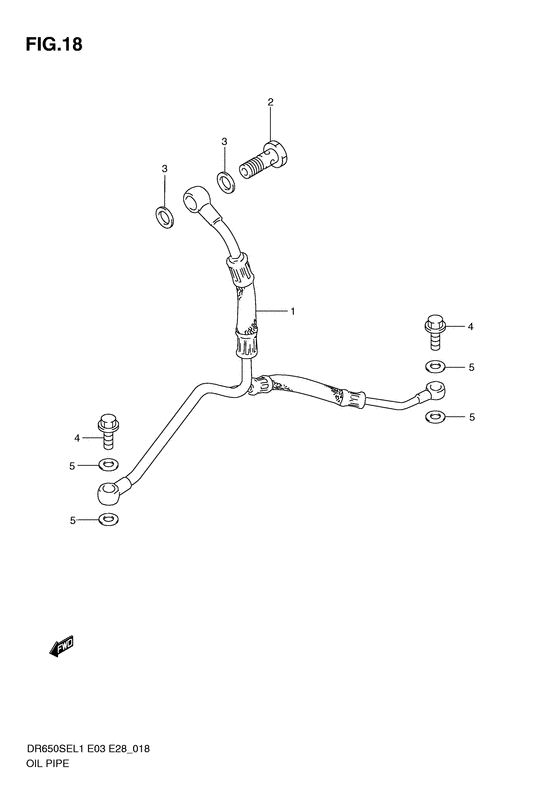

Oil pipe Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16480-32E10-000 PIPE,T/M & CSHAFT OILPipe, t/m & shaft oil |
16480-32E10-000 |
from US $90.64 |
||
|
2
|
2
09360-12008-000 UNIONUnion; |
09360-12008-000 |
from US $5.60 |
||
|
3
|
3
09168-12017-000 GASKET(12X17X1)Gasket, drain plug Gasket (12x17x1); |
09168-12017-000 |
from US $1.06 |
||
|
4
|
4
09360-10066-000 UNIONUnion; |
09360-10066-000 |
from US $6.46 |
||
|
5
|
5
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl Gasket (10.1x16x1); |
09168-10007-000 |
from US $1.60 |
