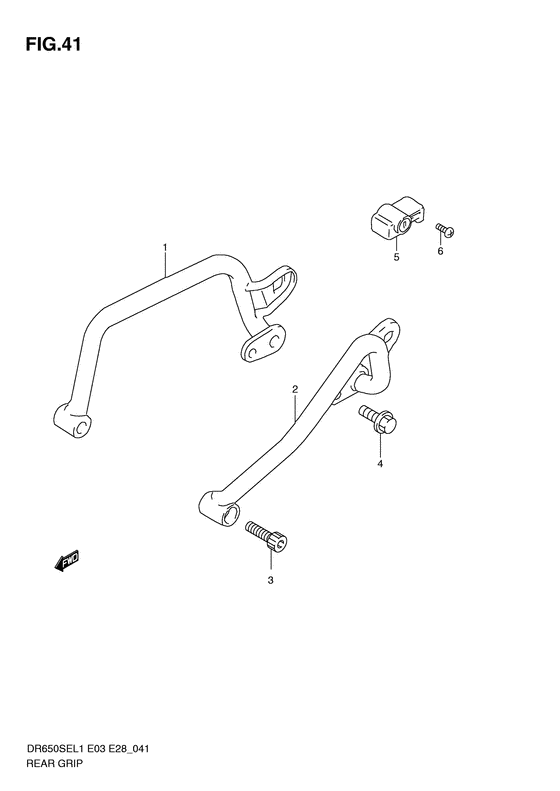

Rear grip Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43970-32E00-YPT GRIP,RR,RGrip, rear rh (gray); |
43970-32E00-YPT |
US $117.23 |
||
|
2
|
2
43980-32E00-YPT GRIP,RR,LGrip, rear lh (gray); |
43980-32E00-YPT |
US $112.91 |
||
|
3
|
3
07130-08257-000 BoltBolt, rh (8x25) |
07130-08257-000 |
from US $5.49 |
||
|
4
|
4
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
95700-41821-000 LOCK SET,HELMETLock set, helmet; |
95700-41821-000 |
from US $76.91 |
||
|
6
|
6
09139-06089-000 SCREW(6X14)Screw (6x14); |
09139-06089-000 |
from US $0.96 |
