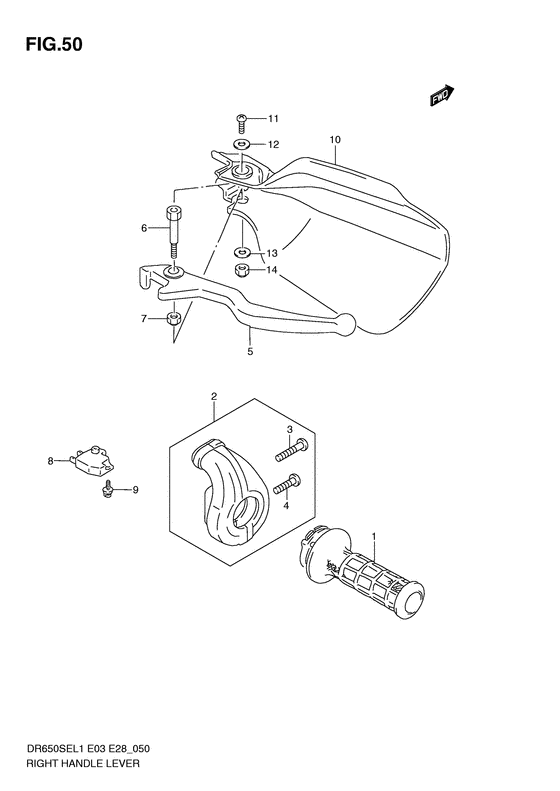

Right handle lever Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-12D11-000 GRIP,THROTTLE |
57110-12D11-000 |
from US $24.80 |
||
|
2
|
2
57100-14D00-000 CASE ASSY,THROTTLE |
57100-14D00-000 |
from US $29.60 |
||
|
3
|
3
09125-05066-000 SCREW(5X25)Screw (5x25); |
09125-05066-000 |
from US $0.81 |
||
|
4
|
4
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
5
|
5
57421-13001-000 LEVER,BRAKE |
57421-13001-000 |
from US $14.90 |
||
|
6
|
6
57431-05D00-000 BOLT,BRAKE LEVER PIVOTBolt, pivot |
57431-05D00-000 |
from US $3.52 |
||
|
7
|
7
57433-09F00-000 NUT,LEVER PIVOT |
57433-09F00-000 |
from US $2.13 |
||
|
8
|
8
57460-17C11-000
Switch assy, stop
Switch assy, stop; |
57460-17C11-000 |
— | ||
| replacements | |||||
|
8
|
8
57460-14J01-000
SWITCH ASSY,FR BRAKE
Switch assy, stop; |
57460-14J01-000 |
— | ||
|
8
|
8
57460-14J02-000 Switch Assy,stopSwitch assy, stop; |
57460-14J02-000 |
US $51.90 |
||
|
9
|
9
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
10
|
10
57341-05D10-019 COVER,KNUCKLE,RCover, knuckle rh (black); |
57341-05D10-019 |
from US $14.44 |
||
|
10
|
10
57341-05D10-30H COVER,KNUCKLE,RCover, knuckle rh (white); |
57341-05D10-30H |
from US $14.40 |
||
|
11
|
11
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.76 |
||
|
12
|
12
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 Washer (5.5x16x1.2); |
09160-05043-000 |
from US $0.91 |
||
|
13
|
13
09160-06130-000 WASHER(6.5X16X1.6)Washer (6.5x16x1.6); |
09160-06130-000 |
from US $0.80 |
||
|
14
|
14
08319-2106A-000 NUT |
08319-2106A-000 |
from US $1.12 |
||
