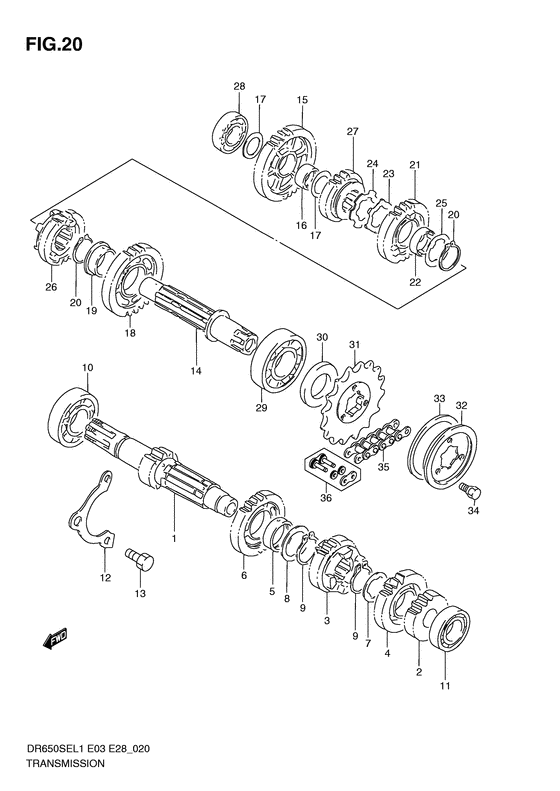

Transmission Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-14810-000 SHAFT SET,CNTRCountershaft (nt:12) Nt:12 |
24120-14810-000 |
from US $152.80 |
||
|
2
|
2
24221-14A10-000 GEAR,2ND DRIVEGear, 2nd drive (nt:16) Nt:16 |
24221-14A10-000 |
from US $48 |
||
|
3
|
3
24231-12D21-000 GEAR,3RD DRIVENt:21 |
24231-12D21-000 |
from US $93.48 |
||
|
4
|
4
24241-14A10-000 GEAR,4TH DRIVEGear, 4th drive (nt:21) Nt:21 |
24241-14A10-000 |
from US $63.84 |
||
|
5
|
5
24252-19F00-000 BUSHBush, sub t/m driven gr Bush, 5th; |
24252-19F00-000 |
from US $8.35 |
||
|
6
|
6
24251-14A10-000 GEAR,5TH DRIVEGear, 5th drive (nt:23) Nt:23 |
24251-14A10-000 |
from US $66 |
||
|
7
|
7
09167-25012-000 WASHER,LOCKWasher, 4th |
09167-25012-000 |
from US $5.03 |
||
|
8
|
8
09181-25167-000 SHIM(25X34X1)Washer, shift shaft Shim (25x34x1); |
09181-25167-000 |
from US $1.82 |
||
|
9
|
9
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
10
|
10
09262-22028-000 BEARING(22X56X16)Bearing (22x56x16); Rh |
09262-22028-000 |
from US $43.20 |
||
|
11
|
11
09262-17046-000 BEARING(17X40X12)Bearing, cntr shaft lh Bearing (17x40x12); Lh |
09262-17046-000 |
from US $15.06 |
||
|
12
|
12
24741-14A00-000 RETAINER,CNTR SHAFT BEARINGHolder, bearing |
24741-14A00-000 |
from US $4.31 |
||
|
13
|
13
01500-0816A-000 Bolt |
01500-0816A-000 |
from US $0.77 |
||
|
14
|
14
24130-14A10-000 SHAFT,DRIVEDriveshaft |
24130-14A10-000 |
from US $100.10 |
||
|
15
|
15
24311-14A01-000 GEAR,1ST DRIVENGear, 1st driven (nt:29) Nt:29 |
24311-14A01-000 |
from US $76.76 |
||
|
16
|
16
09300-20032-000 BUSH(20X24X13)Bush, 1st driven Bush; |
09300-20032-000 |
from US $10.22 |
||
|
17
|
17
09181-20195-000 SHIM(20X30X1)Shim (20x30x1); |
09181-20195-000 |
from US $1.82 |
||
|
18
|
18
24321-14A10-000 GEAR,2ND DRIVENGear, 2nd driven (nt:26) Nt:26 |
24321-14A10-000 |
from US $68 |
||
|
19
|
19
09301-25002-000 BUSH |
09301-25002-000 |
from US $21.06 |
||
|
20
|
20
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
21
|
21
24331-14A20-000 GEAR,3RD DRIVENGear, 3rd driven (nt:26) Nt:26 |
24331-14A20-000 |
from US $84 |
||
|
22
|
22
24332-24510-000 BUSH,DRIVEN GEAR |
24332-24510-000 |
from US $10.18 |
||
|
23
|
23
09169-25001-000 WASHERLock washer Washer; |
09169-25001-000 |
from US $3.69 |
||
|
24
|
24
09167-25013-000 WASHER,LOCKLock washer |
09167-25013-000 |
from US $4.49 |
||
|
25
|
25
09167-25016-000 WASHER,LOCKLock washer |
09167-25016-000 |
from US $2.13 |
||
|
26
|
26
24341-14A10-000 GEAR,4TH DRIVENGear, 4th driven (nt:21) Nt:21 |
24341-14A10-000 |
from US $67.20 |
||
|
27
|
27
24351-14A10-000 GEAR,5TH DRIVENGear, 5th driven (nt:19) Nt:19 |
24351-14A10-000 |
from US $57 |
||
|
28
|
28
09262-20059-000 BEARING(20X42X12)Bearing (20x42x12); Rh |
09262-20059-000 |
from US $14.90 |
||
|
29
|
29
09262-25125-000 BEARING(25X62X17)Bearing, drive shaft lh Bearing (25x62x17); Lh |
09262-25125-000 |
from US $28.88 |
||
|
30
|
30
09283-25096-000 SEAL,OIL(25X44X7)Seal, camshaft oil Oil seal (25x44x7); Lh |
09283-25096-000 |
from US $6.88 |
||
|
31
|
31
27511-31D00-000 SPROCKET,ENGINE(15T-525)Sprocket (nt:15) Nt:15 |
27511-31D00-000 |
from US $50.32 |
||
|
32
|
32
27512-44B00-000 PLATE,ENGINE SPROCKETPlate (yellow) |
27512-44B00-000 |
from US $4.56 |
||
|
33
|
33
27517-37400-000 DAMPER,ENGINE SPROCKETDamper |
27517-37400-000 |
from US $6.84 |
||
|
34
|
34
09111-06039-000 BOLT(6X13)Bolt (6x13); |
09111-06039-000 |
from US $0.76 |
||
|
35
|
35
27600-32C10-110
CHAIN,DRIVE(DID525V8)
Chain, drive (did525v8x110le); |
27600-32C10-110 |
— | ||
| replacement | |||||
|
35
|
35
27600-32C90-110 CHAIN,DRIVE (DID525V11,110L)Chain, drive (did525v8x110le); |
27600-32C90-110 |
from US $198.72 |
||
|
36
|
36
27620-32C10-000
Joint set, chain
Opt |
27620-32C10-000 |
— | ||
| replacement | |||||
|
36
|
36
27620-32C90-000 JOINT SET,CHAIN (DID525V11)Opt |
27620-32C90-000 |
from US $9.20 |
||
