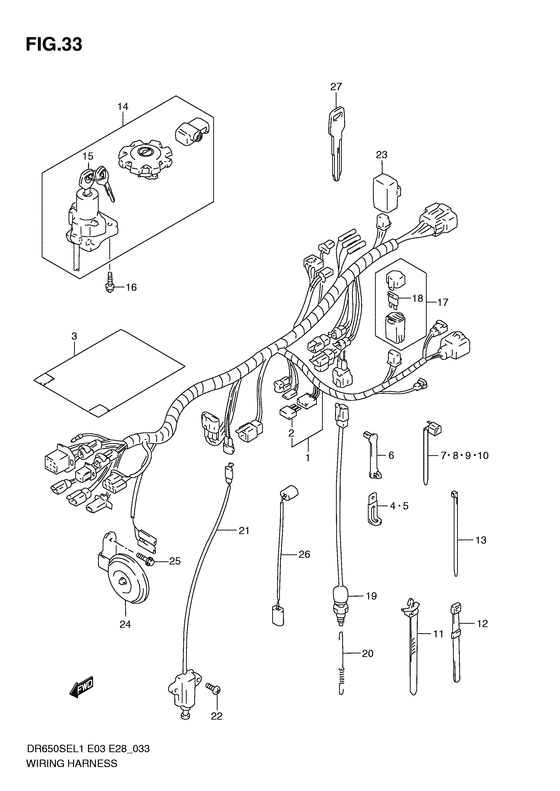

Wiring harness (Dr650sel1 e28) Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-32E30-000 HARNESS,WIRINGHarness, wiring |
36610-32E30-000 |
from US $264.48 |
||
|
2
|
2
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
2
|
2
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
3
|
3
36618-15D20-000
COVER,WIRING HARNESS
Cover, wiring harness; |
36618-15D20-000 |
— | ||
| replacement | |||||
|
3
|
3
36618-15D21-000 Cover,wiring HarnessCover, wiring harness; |
36618-15D21-000 |
from US $9.12 |
||
|
4
|
4
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
5
|
5
09404-08419-000 CLAMP(L:80)Clamp (l:80); |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
5
|
5
09404-08422-000 Clamp,wiring HarnessClamp (l:80); |
09404-08422-000 |
from US $3.62 |
||
|
6
|
6
09407-03401-000 CLAMP(L:33)Clamp (l:33); |
09407-03401-000 |
from US $0.96 |
||
|
7
|
7
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
8
|
8
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
11
|
11
09407-11402-000 CLAMP(L:90)Clamp (l:90); |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
11
|
11
09407-17402-000 CLAMPClamp (l:90); |
09407-17402-000 |
from US $1.98 |
||
|
12
|
12
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp(l:120); |
09407-12402-000 |
from US $1.98 |
||
|
13
|
13
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp (l:100); |
09407-10404-000 |
from US $3.96 |
||
|
14
|
14
37000-04811-000
LOCK SET
|
37000-04811-000 |
— | ||
| replacement | |||||
|
14
|
14
37000-04812-000 Lock Set |
37000-04812-000 |
US $365.50 |
||
|
15
|
15
37100-04F00-000 LOCK ASSY,STEERINGLock assy, steering |
37100-04F00-000 |
from US $162.80 |
||
|
16
|
16
09139-08016-000 BOLT(8X20)Screw (8x20) Bolt (8x20); |
09139-08016-000 |
from US $1.60 |
||
|
17
|
17
36740-32E00-000 BOX ASSY,FUSEFuse assy |
36740-32E00-000 |
from US $14.90 |
||
|
18
|
18
09481-10101-000 FUSE(10A)Fuse (10a); |
09481-10101-000 |
from US $1.28 |
||
|
19
|
19
37740-32E00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop |
37740-32E00-000 |
from US $20.52 |
||
|
20
|
20
09443-06016-000 SPRINGSpring, stop lamp |
09443-06016-000 |
from US $4.49 |
||
|
21
|
21
37840-44X50-000
Switch Assy,Side Stand
Switch assy, side stand; |
37840-44X50-000 |
— | ||
| replacement | |||||
|
21
|
21
37840-44X51-000 Switch Assy,Side StandSwitch assy, side stand; |
37840-44X51-000 |
from US $59.62 |
||
|
22
|
22
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
23
|
23
38740-24X50-000 RELAY ASSYRelay, neutral start Relay assy, side stand; |
38740-24X50-000 |
from US $25.08 |
||
|
24
|
24
38500-32E00-000 HORN ASSY |
38500-32E00-000 |
from US $41.95 |
||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
36851-32E00-000 WIRE,THROTTLE SENSORWire, throttle sensor |
36851-32E00-000 |
US $4.12 |
||
|
27
|
27
37146-33E00-000 KEY,BLANKOpt |
37146-33E00-000 |
from US $27.28 |
||
