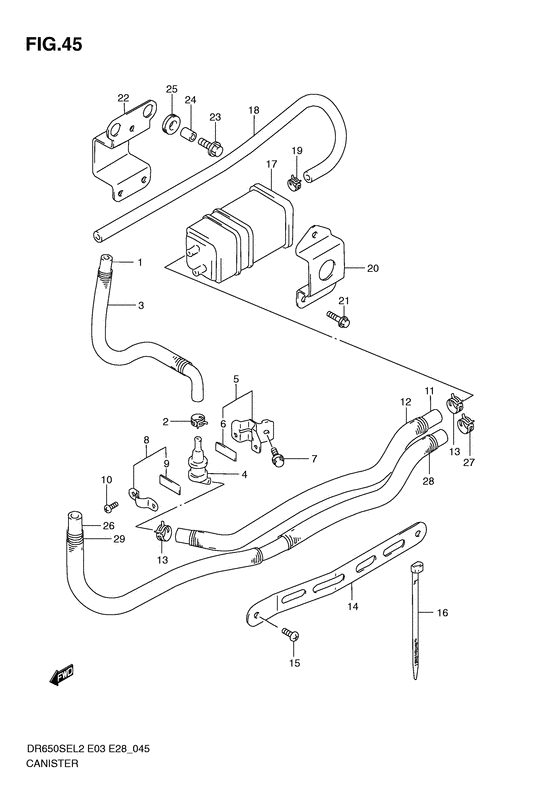

Canister (Dr650sel2 e33) Diagram Suzuki DR650 DR650SE
- Year
- 2012
- Model code
- DR650SEL2(E03) L2
- Sales region
- U.S.A.
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44434-32EA0-000 HOSE,TANK & VALVE CHARGE |
44434-32EA0-000 |
US $21.90 |
||
|
2
|
2
09401-11413-000 CLIPClip; |
09401-11413-000 |
from US $0.88 |
||
|
3
|
3
09440-13012-000 SPRING |
09440-13012-000 |
US $25 |
||
|
4
|
4
44240-17C00-000 VALVE,FUEL TANK BREATHER |
44240-17C00-000 |
from US $30.73 |
||
|
5
|
5
44890-32E00-000 PLATE,BREATHER VALVE |
44890-32E00-000 |
US $8.13 |
||
|
6
|
6
44894-24A00-000 CUSHION |
44894-24A00-000 |
from US $0.92 |
||
|
7
|
7
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
44892-24A00-000 PLATE,FUEL TANK BREATHER NO.2Plate, breather valve Clamp, valve; |
44892-24A00-000 |
from US $2.13 |
||
|
9
|
9
44894-24A00-000 CUSHION |
44894-24A00-000 |
from US $0.92 |
||
|
10
|
10
02112-0408B-000 SCREW |
02112-0408B-000 |
from US $2.50 |
||
|
11
|
11
44435-32EA0-000 HOSE,VALVE & CANISTER CHARGE |
44435-32EA0-000 |
US $30.91 |
||
|
12
|
12
09440-13043-000 SPRING |
09440-13043-000 |
from US $9.42 |
||
|
13
|
13
09401-11413-000 CLIPClip; |
09401-11413-000 |
from US $0.88 |
||
|
14
|
14
44945-32E00-000 PLATE,CANISTER HOSE |
44945-32E00-000 |
US $8.13 |
||
|
15
|
15
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $1.08 |
||
|
17
|
17
17210-14A00-000 CANISTER ASSY,CHARCOAL |
17210-14A00-000 |
from US $75.81 |
||
|
18
|
18
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) Hose (7x12x600); L:600->320 |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
18
|
18
44421-12FR0-000 HOSEHose (7x12x600); L:600->320 |
44421-12FR0-000 |
from US $17.46 |
||
|
19
|
19
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
44921-32E00-000 PLATE,CSTR UPR |
44921-32E00-000 |
US $6.11 |
||
|
21
|
21
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
44930-32E00-000 PLATE,CSTR LWR |
44930-32E00-000 |
US $10.56 |
||
|
23
|
23
09116-06167-000 BOLT(6X20)Bolt (6x20) Bolt (6x20); |
09116-06167-000 |
from US $1.37 |
||
|
24
|
24
09180-06286-000 SPACER(6.5X10X9.4)Spacer (6.5x10x9.4); |
09180-06286-000 |
from US $1.52 |
||
|
25
|
25
09320-10015-000 CUSHION |
09320-10015-000 |
from US $2.13 |
||
|
26
|
26
44436-32EA0-000 HOSE,CSTR & CARB PURGE |
44436-32EA0-000 |
US $39.01 |
||
|
27
|
27
09401-11413-000 CLIPClip; |
09401-11413-000 |
from US $0.88 |
||
|
28
|
28
09440-13043-000 SPRINGSpring, no.1; |
09440-13043-000 |
from US $9.42 |
||
|
29
|
29
09440-13053-000 SPRINGSpring Spring, no.2; |
09440-13053-000 |
US $58.90 |
||
