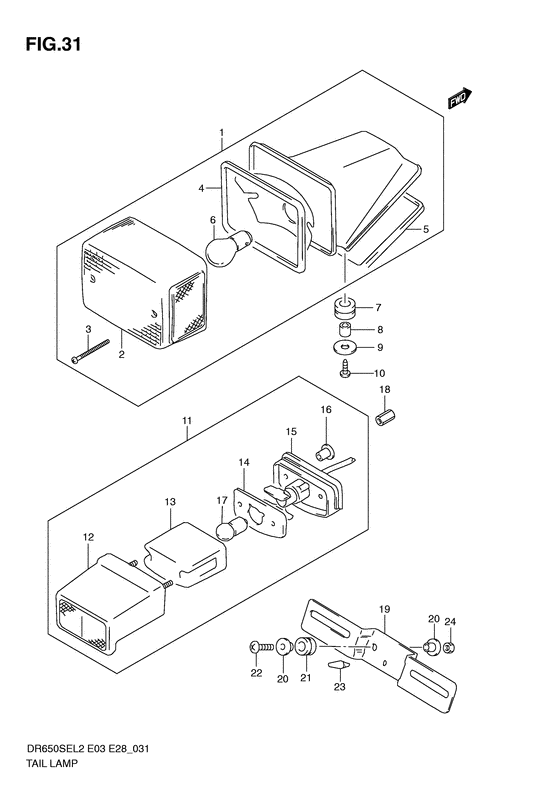

Tail lamp Diagram Suzuki DR650 DR650SE
- Year
- 2012
- Model code
- DR650SEL2(E03) L2
- Sales region
- U.S.A.
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-32E30-000 LAMP ASSY,RR COMBINATION |
35710-32E30-000 |
from US $117.76 |
||
|
2
|
2
35712-14D30-000 LENS |
35712-14D30-000 |
US $71.50 |
||
|
3
|
3
09125-04501-000 SCREW(4X45)Screw (4x45); |
09125-04501-000 |
from US $5.07 |
||
|
4
|
4
35713-14D30-000 GASKET,LENSFor lens |
35713-14D30-000 |
from US $3.17 |
||
|
5
|
5
35717-32E30-000 GASKETFor base |
35717-32E30-000 |
from US $2.69 |
||
|
6
|
6
09471-12083-000 BULB(12V21/5W)Bulb (12v,21/5w); |
09471-12083-000 |
from US $4.14 |
||
| replacement | |||||
|
6
|
6
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v,21/5w); |
09471-12128-000 |
from US $7.20 |
||
|
7
|
7
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.52 |
||
|
8
|
8
09180-06248-000 SPACER(6.1X8X9.5)Spacer (6.1x8x9.5); |
09180-06248-000 |
from US $1.68 |
||
|
9
|
9
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper Washer (6.5x20x1.6); |
09160-06088-000 |
from US $0.47 |
||
|
10
|
10
02142-0625B-000 SCREW |
02142-0625B-000 |
from US $2.87 |
||
|
11
|
11
35910-32E30-000 Lamp assy,license |
35910-32E30-000 |
from US $103.04 |
||
|
12
|
12
35917-17C00-000 COVER,LICENSECover, lens |
35917-17C00-000 |
from US $53.68 |
||
|
13
|
13
35912-38A30-000 LENS |
35912-38A30-000 |
from US $9.64 |
||
|
14
|
14
35913-38A30-000 GASKET,LICENSE LAMP |
35913-38A30-000 |
from US $1.62 |
||
|
15
|
15
35761-24B31-000 CUSHION |
35761-24B31-000 |
US $7.58 |
||
|
16
|
16
35766-24B30-000 SPACER |
35766-24B30-000 |
from US $1.62 |
||
|
17
|
17
09471-12140-000 BULB(12V5W)Bulb (12v,5w); |
09471-12140-000 |
from US $2.03 |
||
|
18
|
18
09140-04006-000 NUTNut, license lamp; |
09140-04006-000 |
from US $7.79 |
||
|
19
|
19
35927-26E30-000 BRACKET,LICENSE PLATEBracket, license plate |
35927-26E30-000 |
from US $6.66 |
||
|
20
|
20
09169-06073-000 WASHERWasher; |
09169-06073-000 |
from US $1.67 |
||
|
21
|
21
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.52 |
||
|
22
|
22
02142-0620A-000 SCREWScrew; |
02142-0620A-000 |
from US $0.68 |
||
|
23
|
23
09321-06023-000 CUSHION |
09321-06023-000 |
from US $3.42 |
||
|
24
|
24
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
