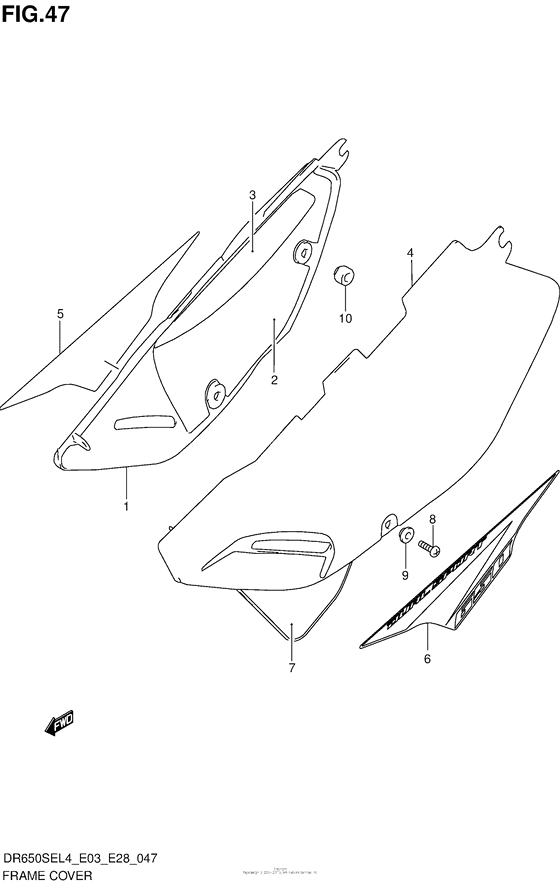

Frame Cover Diagram Suzuki DR650 DR650SE
- Year
- 2014
- Model code
- DR650SEL4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-32E10-30H COVER,FRAME,R(WHITE) |
47111-32E10-30H |
from US $44.88 |
||
|
1
|
1
47111-32E10-YUD COVER,FRAME,R(GRAY) |
47111-32E10-YUD |
US $157.59 |
||
|
2
|
2
47166-32E00-000 SHIELD,FRAME COVER,R NO.1Shield, cover lower rh |
47166-32E00-000 |
from US $23.76 |
||
|
3
|
3
47167-32E00-000 SHIELD,FRAME COVER,R NO.2Shield, cover upper rh |
47167-32E00-000 |
from US $8.80 |
||
|
4
|
4
47211-32E10-30H COVER,FRAME,L(WHITE) |
47211-32E10-30H |
from US $38.76 |
||
|
4
|
4
47211-32E10-YUD COVER,FRAME,L(GRAY) |
47211-32E10-YUD |
US $162.95 |
||
|
5
|
5
68135-32E50-HLW
TAPE,FRAME COVER,R
|
68135-32E50-HLW |
— | ||
| replacement | |||||
|
5
|
5
68135-32E51-HLW Tape,frame Cover Rh |
68135-32E51-HLW |
from US $18.77 |
||
|
5
|
5
68135-32E50-JJZ
TAPE,FRAME COVER,R (FOR YUD)
|
68135-32E50-JJZ |
— | ||
| replacement | |||||
|
5
|
5
68135-32E51-JJZ Tape,frame Cover Rh (FOR YUD) |
68135-32E51-JJZ |
from US $18.77 |
||
|
6
|
6
68145-32E50-HLW
TAPE,FRAME COVER,L
|
68145-32E50-HLW |
— | ||
| replacement | |||||
|
6
|
6
68145-32E51-HLW Tape,frame Cover Lh |
68145-32E51-HLW |
from US $18.77 |
||
|
6
|
6
68145-32E50-JJZ
TAPE,FRAME COVER,L (FOR YUD)
|
68145-32E50-JJZ |
— | ||
| replacement | |||||
|
6
|
6
68145-32E51-JJZ Tape,frame Cover Lh (FOR YUD) |
68145-32E51-JJZ |
from US $18.77 |
||
|
7
|
7
68146-32E00-000 TAPE,LWRTape, no.2, lh |
68146-32E00-000 |
from US $17.31 |
||
|
8
|
8
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
09169-06041-000 WASHER |
09169-06041-000 |
from US $0.76 |
||
|
10
|
10
09321-10019-000 CUSHION |
09321-10019-000 |
from US $2.28 |
||
