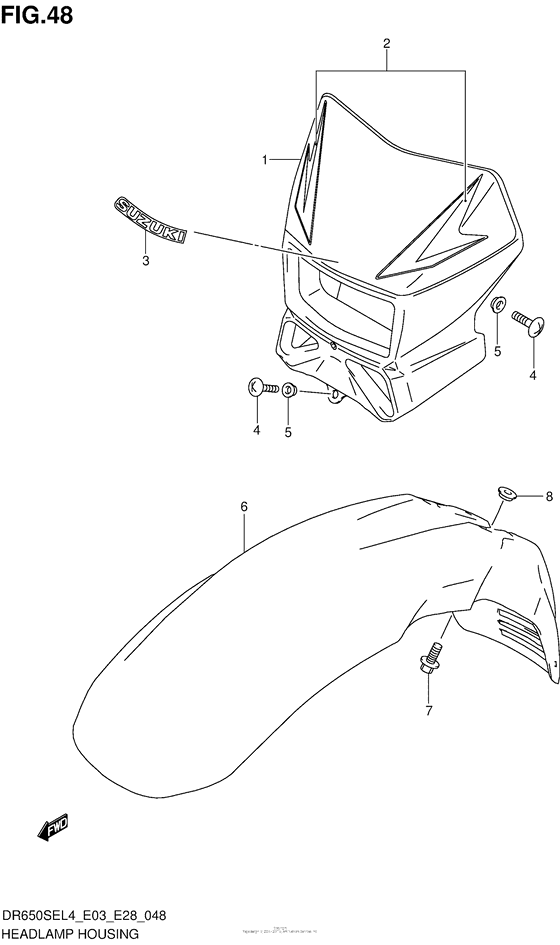

Headlamp Housing Diagram Suzuki DR650 DR650SE
- Year
- 2014
- Model code
- DR650SEL4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51811-29F50-30H Cover,headlamp |
51811-29F50-30H |
from US $59.98 |
||
|
1
|
1
51811-29F50-YUD COVER,HEADLAMP(GRAY) |
51811-29F50-YUD |
US $145.25 |
||
|
2
|
2
68720-32E00-HLW
TAPE SET,HEADLAMP HOUSING
|
68720-32E00-HLW |
— | ||
| replacement | |||||
|
2
|
2
68720-32E01-HLW Tape Set,headlamp Hsg |
68720-32E01-HLW |
from US $24.66 |
||
|
2
|
2
68720-32E00-JKA
TAPE SET,HEADLAMP HOUSING
|
68720-32E00-JKA |
— | ||
| replacement | |||||
|
2
|
2
68720-32E01-JKA Tape Set,headlamp Hsg |
68720-32E01-JKA |
from US $19.50 |
||
|
3
|
3
68281-01H00-019
EMBLEM,SUZUKI
|
68281-01H00-019 |
— | ||
| replacement | |||||
|
3
|
3
68281-01H01-019 Emblem,"suzuki" |
68281-01H01-019 |
from US $8.48 |
||
|
3
|
3
68281-01H00-YD8
EMBLEM,SUZUKI
|
68281-01H00-YD8 |
— | ||
| replacement | |||||
|
3
|
3
68281-01H01-YD8 Emblem,"suzuki" |
68281-01H01-YD8 |
from US $8.48 |
||
|
4
|
4
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
5
|
5
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
6
|
6
53111-13E00-30H FENDER,FRONT (WHITE) |
53111-13E00-30H |
from US $72 |
||
|
6
|
6
53111-13E00-YUD FENDER,FR |
53111-13E00-YUD |
US $179.57 |
||
|
7
|
7
09116-06170-000 BOLT(6X16) |
09116-06170-000 |
from US $0.80 |
||
|
8
|
8
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
