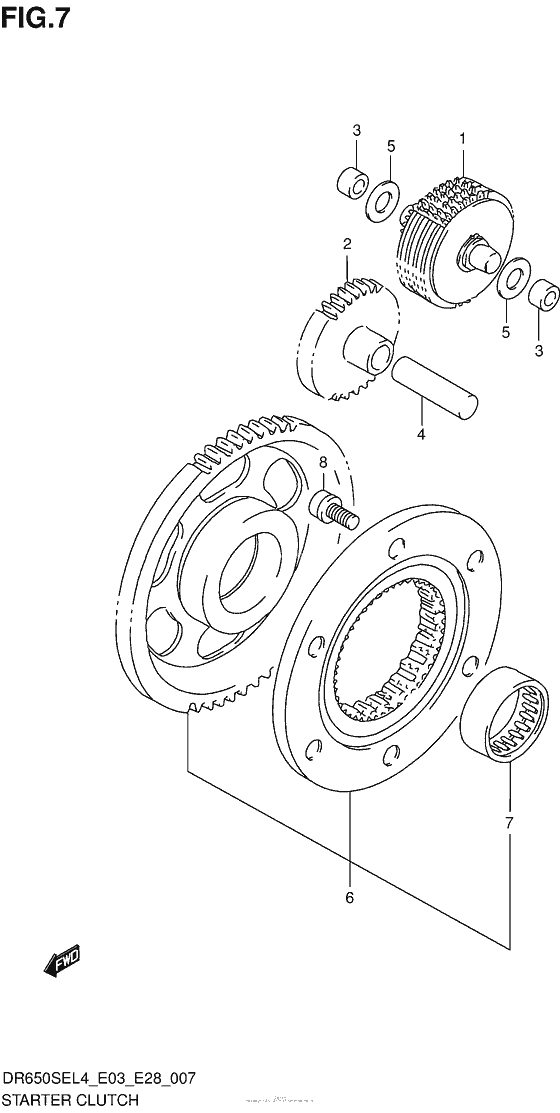

Starter Clutch Diagram Suzuki DR650 DR650SE
- Year
- 2014
- Model code
- DR650SEL4
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12600-12D01-000 LIMITER ASSY,STARTER IDLE GEAR |
12600-12D01-000 |
from US $146.40 |
||
|
2
|
2
12612-12D01-000 GEAR,STARTER IDLE NO.2(NT:27)Gear, starter idle no.2 (nt:18/27) |
12612-12D01-000 |
from US $38.13 |
||
|
3
|
3
12618-31D01-000 BUSH,LIMITER GEAR SHAFT |
12618-31D01-000 |
from US $10.79 |
||
|
4
|
4
09206-12006-000 PIN(8X12X45.5)Pin, starter idle gear no.2 |
09206-12006-000 |
from US $5.02 |
||
|
5
|
5
08211-10221-000 WASHER |
08211-10221-000 |
from US $1.22 |
||
|
6
|
6
12600-09860-000 Clutch Set, Starter |
12600-09860-000 |
from US $235.20 |
||
|
7
|
7
09263-31009-000 BEARING(31X39X17.8) |
09263-31009-000 |
from US $16.10 |
||
|
8
|
8
09106-08106-000 BOLT(8X20) |
09106-08106-000 |
from US $4.13 |
