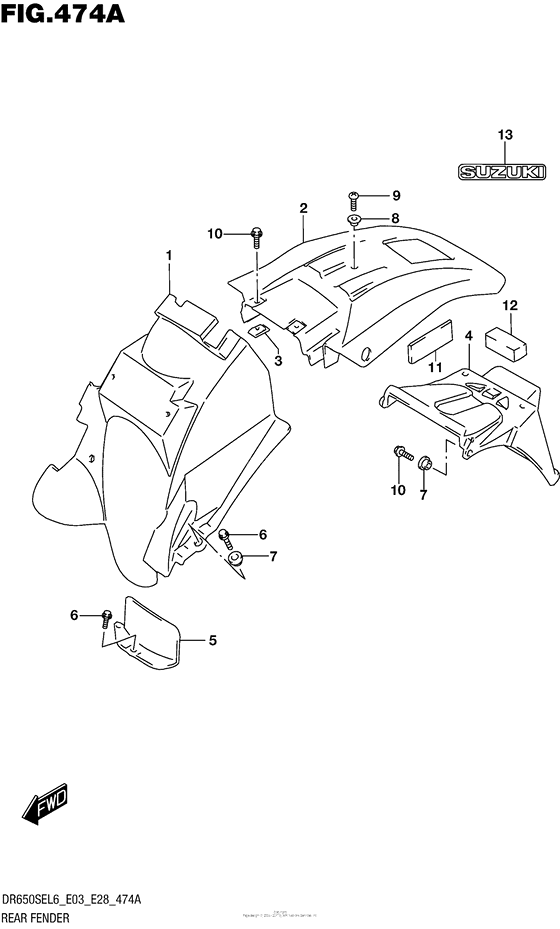

Rear Fender (Dr650Sel6 E03) Diagram Suzuki DR650 DR650SE
- Year
- 2016
- Model code
- DR650SEL6
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63112-32E00-000 BODY,RR FENDER FRBody, rear fender front |
63112-32E00-000 |
from US $35.33 |
||
|
2
|
2
63113-32E30-YUD BODY,RR FENDER |
63113-32E30-YUD |
from US $65.14 |
||
|
3
|
3
47153-19C01-000 PLATE,FRAME COVERPlate, frame cover |
47153-19C01-000 |
from US $3.72 |
||
|
4
|
4
63311-32E00-000 EXTENSION,RR FENDERExtension, rear fender |
63311-32E00-000 |
from US $30.73 |
||
|
5
|
5
63411-32E00-000 MUDGUARD,RR FENDERMud guard, rear fender |
63411-32E00-000 |
from US $8.57 |
||
|
6
|
6
09113-06001-000 BOLT(6X16)Bolt, outer |
09113-06001-000 |
from US $1.22 |
||
|
7
|
7
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
|
8
|
8
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
9
|
9
09139-06067-000
SCREW(6X16)
|
09139-06067-000 |
— | ||
| replacement | |||||
|
9
|
9
09139-06237-000 Screw(6X16) |
09139-06237-000 |
US $17.70 |
||
|
10
|
10
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
63118-32E00-000 CUSHION,RR FENDER |
63118-32E00-000 |
US $10.33 |
||
|
12
|
12
94475-21E00-000 CUSHION |
94475-21E00-000 |
from US $6.84 |
||
|
13
|
13
68177-04A00-A83 EMBLEM,"SUZUKI" |
68177-04A00-A83 |
from US $5.34 |
||
