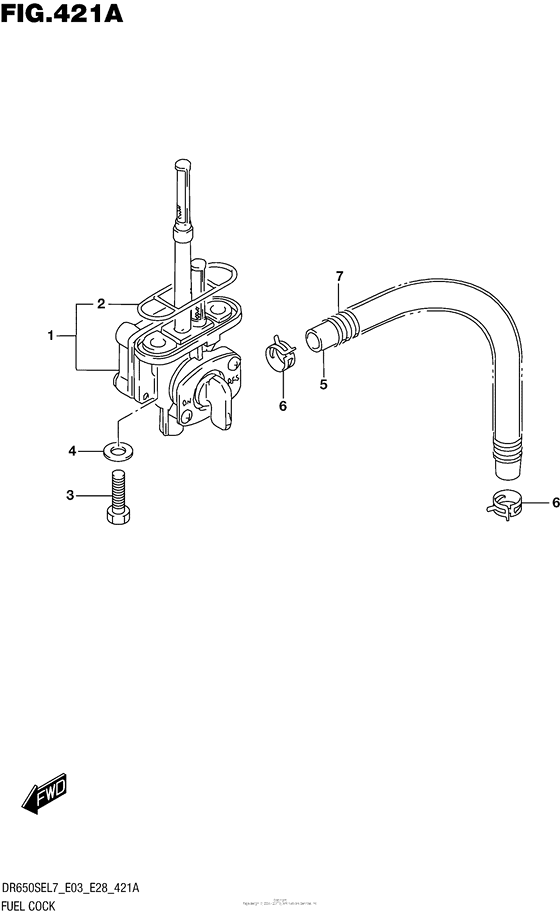

Fuel Cock Diagram Suzuki DR650 DR650SE
- Year
- 2017
- Model code
- DR650SEL7
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44300-32E00-000
COCK ASSY,FUEL
|
44300-32E00-000 |
— | ||
| replacement | |||||
|
1
|
1
44300-32E01-000 Cock Assy,fuel |
44300-32E01-000 |
from US $96.80 |
||
|
2
|
2
44348-87420-000
GASKET,JOINT
|
44348-87420-000 |
— | ||
| replacement | |||||
|
2
|
2
44348-87421-000 Gasket,joint |
44348-87421-000 |
from US $2.13 |
||
|
3
|
3
09128-06057-000 BOLT(6X20)Bolt (6x20) |
09128-06057-000 |
from US $1.12 |
||
|
4
|
4
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
|
5
|
5
44421-32EA0-000
HOSE,FUEL
|
44421-32EA0-000 |
— | ||
| replacement | |||||
|
5
|
5
44421-32EA1-000 Hose,fuel |
44421-32EA1-000 |
US $20.47 |
||
|
6
|
6
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
7
|
7
09440-13041-000 SPRING |
09440-13041-000 |
from US $2.13 |
||
