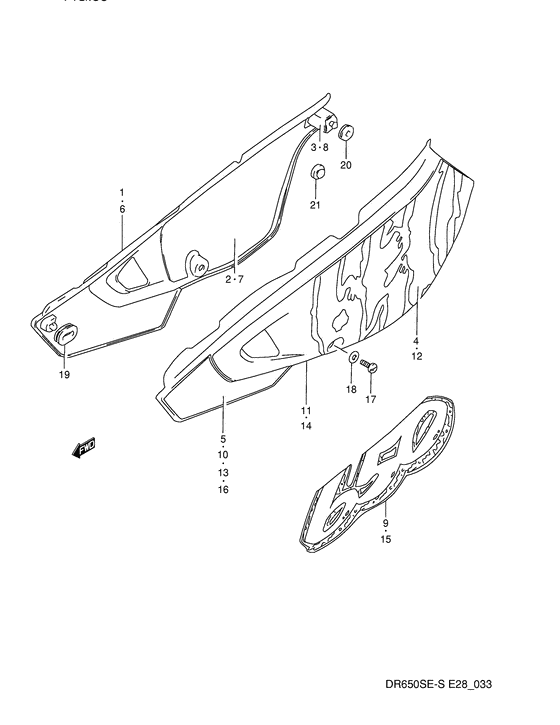

Frame cover (Model n/p) Diagram Suzuki DR650 DR650SE
- Year
- 1995
- Model code
- DR650SES(E28) S
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47110-12E10-28X
Cover, frame rh (white)
Model n |
47110-12E10-28X |
— | ||
| replacements | |||||
|
1
|
1
47166-12E00-000
Shield,frame co
Model n |
47166-12E00-000 |
— | ||
|
1
|
1
47167-12E00-000
SHIELD,FRAME COVER,R NO.2
Model n |
47167-12E00-000 |
— | ||
|
1
|
1
47111-12E00-30H
Cover,frame,r
Model n |
47111-12E00-30H |
— | ||
|
2
|
2
47166-12E00-000
Shield,frame co
Model n |
47166-12E00-000 |
— | ||
|
3
|
3
47167-12E00-000
SHIELD,FRAME COVER,R NO.2
Shield, cover upper rh; Model n |
47167-12E00-000 |
— | ||
|
4
|
4
68135-12E10-M82
Tape, rh
Model n |
68135-12E10-M82 |
— | ||
| replacement | |||||
|
4
|
4
68135-12E11-M82
New Genuine Part
Model n |
68135-12E11-M82 |
— | ||
|
5
|
5
68136-12E00-000
Tape,frame cove
Tape, no.2, rh; Model n |
68136-12E00-000 |
— | ||
|
6
|
6
47110-12E20-28X
Cover, frame rh (white)
Model p |
47110-12E20-28X |
— | ||
| replacements | |||||
|
6
|
6
47166-12E00-000
Shield,frame co
Model p |
47166-12E00-000 |
— | ||
|
6
|
6
47167-12E00-000
SHIELD,FRAME COVER,R NO.2
Model p |
47167-12E00-000 |
— | ||
|
6
|
6
47111-12E00-30H
Cover,frame,r
Model p |
47111-12E00-30H |
— | ||
|
7
|
7
47166-12E00-000
Shield,frame co
Model p |
47166-12E00-000 |
— | ||
|
8
|
8
47167-12E00-000
SHIELD,FRAME COVER,R NO.2
Shield, cover upper rh; Model p |
47167-12E00-000 |
— | ||
|
9
|
9
68135-12E20-A4F
Emblem,frame co
Model p |
68135-12E20-A4F |
— | ||
|
10
|
10
68136-12E00-000
Tape,frame cove
Tape, no.2, rh; Model p |
68136-12E00-000 |
— | ||
|
11
|
11
47210-12E10-28X
Cover, frame lh (white)
Model n |
47210-12E10-28X |
— | ||
| replacement | |||||
|
11
|
11
47211-12E00-30H
Cover,frame,l
Model n |
47211-12E00-30H |
— | ||
|
12
|
12
68145-12E10-M82
Tape, lh
Model n |
68145-12E10-M82 |
— | ||
| replacement | |||||
|
12
|
12
68145-12E11-M82
New Genuine Part
Model n |
68145-12E11-M82 |
— | ||
|
13
|
13
68146-12E00-000
Tape,frame cove
Tape, no.2, lh; Model n |
68146-12E00-000 |
— | ||
|
14
|
14
47210-12E20-28X
Cover, frame lh (white)
Model p |
47210-12E20-28X |
— | ||
| replacement | |||||
|
14
|
14
47211-12E00-30H
Cover,frame,l
Model p |
47211-12E00-30H |
— | ||
|
15
|
15
68145-12E20-A4F
Emblem,frame co
Emblem, rh; Model p |
68145-12E20-A4F |
— | ||
|
16
|
16
68146-12E00-000
Tape,frame cove
Tape, no.2, lh; Model p |
68146-12E00-000 |
— | ||
|
17
|
17
02142-06167-000 SCREWScrew Screw; |
02142-06167-000 |
from US $0.76 |
||
|
18
|
18
09169-06028-000 Washer front feWasher; |
09169-06028-000 |
from US $0.96 |
||
| replacement | |||||
|
18
|
18
09169-06041-000 WASHERWasher; |
09169-06041-000 |
from US $0.76 |
||
|
19
|
19
09320-08029-000 CUSHIONCushion, front; |
09320-08029-000 |
from US $1.44 |
||
|
20
|
20
09320-08028-000 CUSHIONGrommet Cushion, rear; |
09320-08028-000 |
from US $2.13 |
||
|
21
|
21
09321-10018-000 CUSHIONCushion, muffler; |
09321-10018-000 |
from US $2.13 |
||
