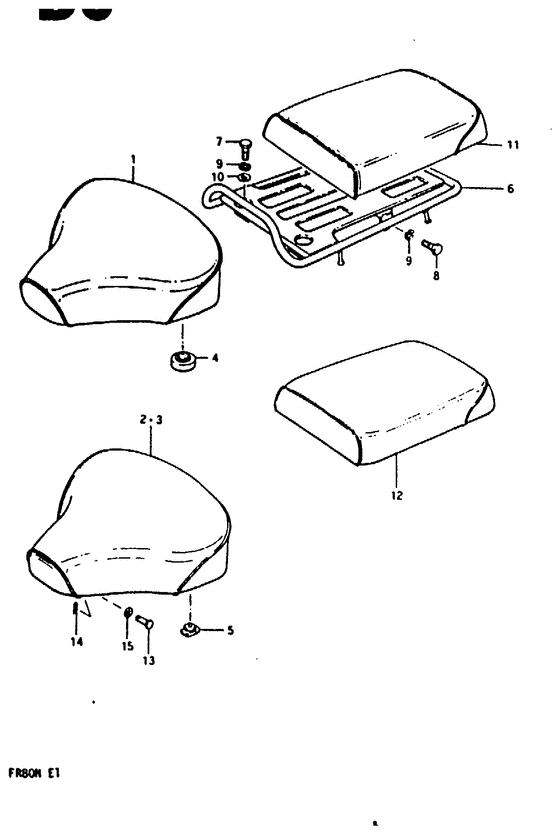

Single seat Diagram Suzuki FR80
- Year
- 1977
- Model code
- FR80B(M/B/N) B
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-35003-866
Seat assy (black)
Seat assy (black); ~f.no. 35305 |
45100-35003-866 |
— | ||
| replacements | |||||
|
1
|
1
09200-08006-000 PINSeat assy (black); ~f.no. 35305 |
09200-08006-000 |
from US $0.14 |
||
|
1
|
1
09385-06001-000 CLIPSeat assy (black); ~f.no. 35305 |
09385-06001-000 |
from US $4.69 |
||
|
1
|
1
45100-35012-48F
Seat assy
Seat assy (black); ~f.no. 35305 |
45100-35012-48F |
— | ||
|
1
|
1
08322-01087-000 WASHERLock washer Seat assy (black); ~f.no. 35305 |
08322-01087-000 |
from US $0.76 |
||
|
1
|
1
08322-11088-000
Washer
Seat assy (black); ~f.no. 35305 |
08322-11088-000 |
— | ||
|
2
|
2
45100-35010-866
Seat assy (black)
Seat assy (black); |
45100-35010-866 |
— | ||
| replacement | |||||
|
2
|
2
45100-35012-48F
Seat assy
Seat assy (black); |
45100-35012-48F |
— | ||
|
3
|
3
45100-35010-865
Seat assy (black)
Seat assy (black); |
45100-35010-865 |
— | ||
| replacement | |||||
|
3
|
3
45100-35012-48F
Seat assy
Seat assy (black); |
45100-35012-48F |
— | ||
|
4
|
4
09321-14003-000
CUSHION
|
09321-14003-000 |
— | ||
|
4
|
4
09321-14003-000
CUSHION
|
09321-14003-000 |
— | ||
|
5
|
5
09329-10001-000 CUSHIONCushion; |
09329-10001-000 |
from US $1.82 |
||
|
6
|
6
46110-35001-000
CARRIER,LUGGAGE
|
46110-35001-000 |
— | ||
|
7
|
7
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
7
|
7
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
8
|
8
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
9
|
9
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
11
|
11
45300-06302-866
Seat assy, pillion (black)
Seat assy, pillion (black); To 45300-06302-866 |
45300-06302-866 |
— | ||
| replacement | |||||
|
11
|
11
45300-06360-48H SEAT SET,PILLIONSeat assy, pillion (black); To 45300-06302-866 |
45300-06360-48H |
US $294.40 |
||
|
12
|
12
45300-06310-866
Seat, pillion (black)
Seat assy, pillion (black); |
45300-06310-866 |
— | ||
| replacement | |||||
|
12
|
12
45300-06360-48H SEAT SET,PILLIONSeat assy, pillion (black); |
45300-06360-48H |
US $294.40 |
||
|
13
|
13
09200-08006-000 PIN |
09200-08006-000 |
from US $0.14 |
||
|
14
|
14
09385-06001-000 CLIP |
09385-06001-000 |
from US $4.69 |
||
|
15
|
15
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
