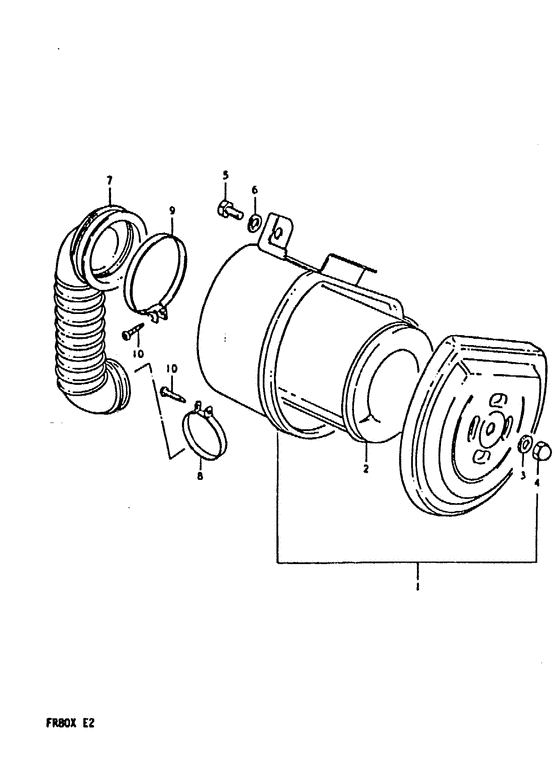

Air cleaner Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-35010-000
Cleaner assy, air
To 13700-35018 |
13700-35010-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-35604-000
CLEANER ASSY,AIR
To 13700-35018 |
13700-35604-000 |
— | ||
|
2
|
2
13780-35012-000
FILTER ASSY
Filter; |
13780-35012-000 |
— | ||
|
3
|
3
13818-00010-000
Washer
Washer; |
13818-00010-000 |
— | ||
|
4
|
4
08313-11068-000
Nut
|
08313-11068-000 |
— | ||
| replacement | |||||
|
4
|
4
08313-10067-000 NUT |
08313-10067-000 |
from US $0.96 |
||
|
5
|
5
01107-06108-000
Bolt
|
01107-06108-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-06107-000 Bolt |
01500-06107-000 |
from US $0.76 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
13881-35002-000 HOSE,CARBURETOR AIR INLETHose, carburetor air inlet; |
13881-35002-000 |
US $35.20 |
||
|
8
|
8
09402-34306-000
Air inlet hose
|
09402-34306-000 |
— | ||
| replacement | |||||
|
8
|
8
09402-34303-000 CLAMP |
09402-34303-000 |
from US $8.89 |
||
|
9
|
9
09402-54303-000 CLAMP |
09402-54303-000 |
from US $6.26 |
||
|
10
|
10
03211-04258-000
Screw
|
03211-04258-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.80 |
||
