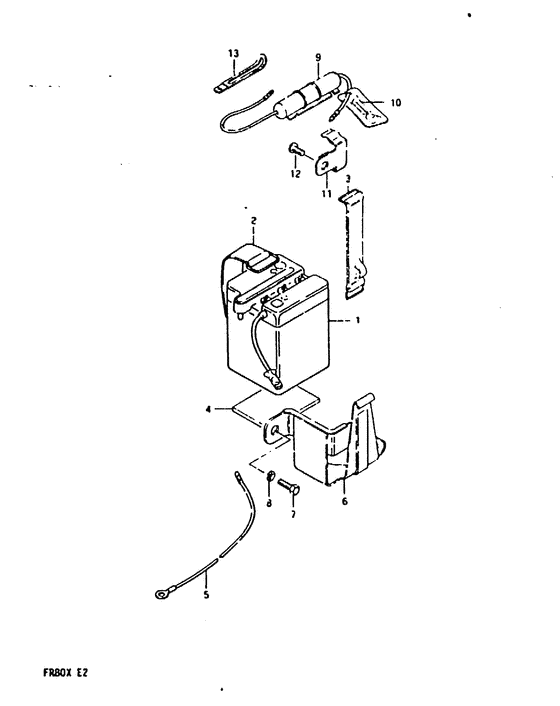

Battery Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-03010-000
BATTERY ASSY(6N4-2A4.2AH)
Battery (6v, 4ah); |
33610-03010-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-03011-000
Battery Assy
Battery (6v, 4ah); |
33610-03011-000 |
— | ||
|
1
|
1
33610-03012-000
Battery Assy
Battery (6v, 4ah); |
33610-03012-000 |
— | ||
|
3
|
3
33651-43200-000 BAND,BATTERYBand, battery; |
33651-43200-000 |
US $4.60 |
||
|
4
|
4
33652-37000-000
Protector, battery
Cut as reguired profile |
33652-37000-000 |
— | ||
|
5
|
5
36862-27690-000 LEAD WIRELead wire, battery (-) Read wire, battery (-); |
36862-27690-000 |
from US $2.83 |
||
|
6
|
6
41540-35010-000
HOLDER
|
41540-35010-000 |
— | ||
|
7
|
7
09128-06004-000 SCREW(6X10) |
09128-06004-000 |
from US $0.18 |
||
| replacement | |||||
|
7
|
7
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
8
|
8
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
9
|
9
36740-35011-000
Case assy, fuse
|
36740-35011-000 |
— | ||
| replacement | |||||
|
9
|
9
36740-35012-000 CASE ASSY,FUSE |
36740-35012-000 |
from US $13.31 |
||
|
10
|
10
09481-10001-000 FUSE(10A)Fuse (10a); |
09481-10001-000 |
from US $0.68 |
||
