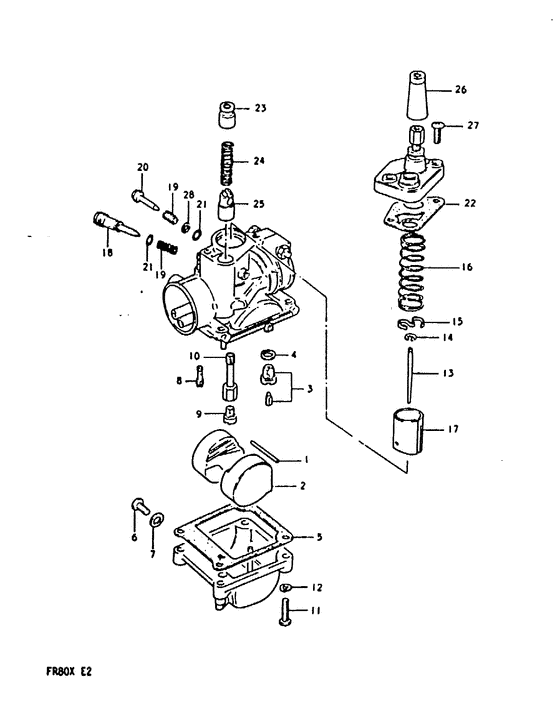

Carburetor Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27
|
27
13200-35660-000
Carburetor assy
|
13200-35660-000 |
— | ||
|
1
|
1
13254-35013-000 Pin, float |
13254-35013-000 |
US $3.62 |
||
| replacement | |||||
|
1
|
1
13254-01010-000 PIN,FLOAT |
13254-01010-000 |
from US $1.35 |
||
|
2
|
2
13252-35013-000
Float
|
13252-35013-000 |
— | ||
|
3
|
3
13370-43020-000 VALVE ASSY,NEEDLE |
13370-43020-000 |
US $29.81 |
||
|
4
|
4
13392-01010-000 GASKET,NEEDLE VALVEGasket, valve seat Gasket, valve seat; |
13392-01010-000 |
from US $1.60 |
||
|
5
|
5
13251-35010-000
GASKET,FLOAT CHAMBER BODY
|
13251-35010-000 |
— | ||
|
6
|
6
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
7
|
7
13615-35010-000
Gasket
|
13615-35010-000 |
— | ||
| replacement | |||||
|
7
|
7
08212-05101-000 WASHER |
08212-05101-000 |
US $9.90 |
||
|
8
|
8
09492-15003-000
Jet, pilot (15)
|
09492-15003-000 |
— | ||
| replacement | |||||
|
8
|
8
09492-15007-000 JET,PILOT(15)Jet, pilot (15) |
09492-15007-000 |
from US $13.06 |
||
|
9
|
9
09491-77003-000
Jet, maim (77.5)
|
09491-77003-000 |
— | ||
| replacement | |||||
|
9
|
9
09491-77005-000 JET,MAIN(77.5) |
09491-77005-000 |
from US $4.71 |
||
|
10
|
10
09494-00173-000
Jet needle
Jet, needle (e-1); |
09494-00173-000 |
— | ||
|
11
|
11
02112-04208-000
Screw
|
02112-04208-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0420A-000 SCREW |
02112-0420A-000 |
from US $0.80 |
||
|
12
|
12
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
13
|
13
13383-35630-000
Needle, jet (3n4-3)
Needle, jet (3n4-3); |
13383-35630-000 |
— | ||
|
14
|
14
13394-12110-000
Clip, needle
|
13394-12110-000 |
— | ||
| replacement | |||||
|
14
|
14
13394-40D00-000 CLIP,NEEDLEClip |
13394-40D00-000 |
from US $1.92 |
||
|
15
|
15
13581-01010-000
Seat, valve spring
|
13581-01010-000 |
— | ||
| replacement | |||||
|
15
|
15
13581-07910-000 PLATE |
13581-07910-000 |
US $5.85 |
||
|
16
|
16
13573-35010-000 SPRING,THROTTLE VALVE RETURNSpring, throttle valve Spring, throttle valve; |
13573-35010-000 |
US $2.98 |
||
|
17
|
17
13551-35630-000
VALVE,THROTTLE(CA:2.0)
Valve, throttle (ca:2.0); |
13551-35630-000 |
— | ||
|
18
|
18
13269-15011-000 SCREW,PILOT AIR ADJUSTINGScrew, pilot air Screw, pilot air; |
13269-15011-000 |
from US $8.98 |
||
|
19
|
19
13268-35010-000 SPRING |
13268-35010-000 |
from US $1.98 |
||
|
20
|
20
13267-35011-000
Screw, throttle stop
|
13267-35011-000 |
— | ||
| replacement | |||||
|
20
|
20
13483-16A01-000 SCREW,THROTTLE STOP |
13483-16A01-000 |
from US $7.95 |
||
|
21
|
21
13295-33010-000 O RINGO ring O ring; |
13295-33010-000 |
from US $1.82 |
||
|
22
|
22
13266-35013-000
Gasket
|
13266-35013-000 |
— | ||
|
23
|
23
13681-04010-000
CAP
Cap, cable adjuster; |
13681-04010-000 |
— | ||
| replacement | |||||
|
23
|
23
13681-04011-000 CAPCap, cable adjuster; |
13681-04011-000 |
US $7.89 |
||
|
24
|
24
13417-01010-000 SPRINGSpring; |
13417-01010-000 |
from US $2.65 |
||
|
25
|
25
13411-01010-000 PLUNGER,STARTERValve, starter; |
13411-01010-000 |
from US $7.84 |
||
|
26
|
26
13681-16601-000 CAPBoot Boot, cable adjuster; |
13681-16601-000 |
from US $5.23 |
||
|
27
|
27
02112-04108-000
Screw
|
02112-04108-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-04107-000 SCREW |
02112-04107-000 |
from US $0.80 |
||
|
28
|
28
13291-35010-000 WASHERWasher, throttle valve stop; |
13291-35010-000 |
from US $1.82 |
||
