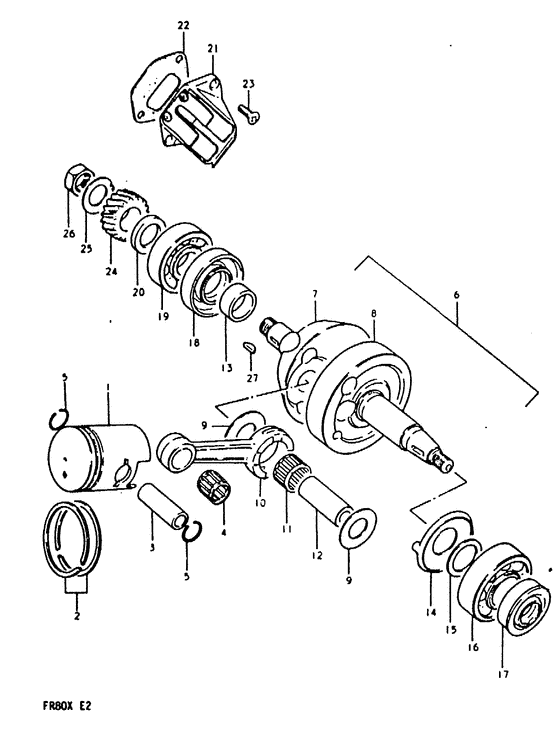

Crankshaft Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12110-35622-000
Piston (std)
Piston (std); |
12110-35622-000 |
— | ||
| replacement | |||||
|
1
|
1
12110-35623-000
PISTON,STD
Piston (std); |
12110-35623-000 |
— | ||
|
1
|
1
12110-35622-050
Piston (os:0.5)
Piston (os:0.5); |
12110-35622-050 |
— | ||
| replacements | |||||
|
1
|
1
12100-35620-050
PISTON SET(OS:0.5)
Piston (os:0.5); |
12100-35620-050 |
— | ||
|
1
|
1
12110-35623-050 PISTON (49.5MM)Piston (os:0.5); |
12110-35623-050 |
from US $34.04 |
||
|
1
|
1
12110-35622-100
Piston (os:1.0)
Piston (os:1.0); |
12110-35622-100 |
— | ||
| replacement | |||||
|
1
|
1
12110-35623-100
PISTON (50.0MM)
Piston (os:1.0); |
12110-35623-100 |
— | ||
|
2
|
2
12140-25631-000 RING SET,PISTONRing set, piston (std); |
12140-25631-000 |
from US $42.72 |
||
|
2
|
2
12140-25631-050 RING SET,PISTON(OS:0.50)Piston ring set (os:0.5) Ring set, piston (os:0.5); |
12140-25631-050 |
US $47.07 |
||
|
2
|
2
12140-28630-000 RING SET,PISTONPiston ring set (os:1.0) Ring set, piston (os:1.0); |
12140-28630-000 |
from US $44.80 |
||
|
3
|
3
12151-25000-000
Pin, piston
|
12151-25000-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-35400-000 PIN,PISTON |
12151-35400-000 |
from US $7.45 |
||
|
4
|
4
09263-12003-000
Bearing, piston pin
|
09263-12003-000 |
— | ||
| replacement | |||||
|
4
|
4
09263-12023-000 BEARING(12X16X16)Bearing (12x16x15.8) |
09263-12023-000 |
from US $5.62 |
||
|
5
|
5
09381-12001-000 RING,SNAPCirclip |
09381-12001-000 |
from US $1.28 |
||
|
6
|
6
12200-19302-000
Crankshaft assy
|
12200-19302-000 |
— | ||
|
7
|
7
12221-19300-000
Crankshaft, rh
|
12221-19300-000 |
— | ||
|
8
|
8
12261-19301-000
Crankshaft, lh
|
12261-19301-000 |
— | ||
|
9
|
9
09160-19001-000 WASHER(19X32X1)Thrust washer Washer; |
09160-19001-000 |
from US $1.98 |
||
|
10
|
10
12161-05001-000 ROD,CONNECTING |
12161-05001-000 |
US $39.74 |
||
|
11
|
11
09263-19009-000 BEARING(19X25X16)Bearing, crank pin |
09263-19009-000 |
from US $12.77 |
||
|
12
|
12
12211-19300-000
PIN,CRANK
|
12211-19300-000 |
— | ||
|
13
|
13
09180-20021-000 SPACER(20X26X9)Spacer, rh Spacer, rh; |
09180-20021-000 |
from US $7.04 |
||
|
14
|
14
12511-05000-000
PLATE,CSHAFT OIL GUIDE
|
12511-05000-000 |
— | ||
|
15
|
15
08221-20285-000 WasherShim |
08221-20285-000 |
US $2.38 |
||
| replacement | |||||
|
15
|
15
09181-20158-000 SHIM(20X28X0.5)Shim, fwd (t:0.5) |
09181-20158-000 |
from US $4.13 |
||
|
16
|
16
09262-20005-000
BEARING(20X47X14)
|
09262-20005-000 |
— | ||
|
17
|
17
09283-20034-000 SEAL,OIL(19.6X37X8)Oil seal (20x37x8) Oil seal, lh; |
09283-20034-000 |
from US $3.80 |
||
|
18
|
18
09283-26007-000 SEAL,OIL(26X52X8)Oil seal, rh |
09283-26007-000 |
from US $8.80 |
||
|
19
|
19
09262-20009-000
Bearing, inner
|
09262-20009-000 |
— | ||
| replacement | |||||
|
19
|
19
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) |
09262-20073-000 |
from US $12.31 |
||
|
20
|
20
09180-16012-000
Spacer
|
09180-16012-000 |
— | ||
|
21
|
21
13150-35311-000
Valve, reed
Valve, reed; |
13150-35311-000 |
— | ||
| replacement | |||||
|
21
|
21
13150-35321-000 VALVE ASSY,REEDValve, reed; |
13150-35321-000 |
US $44.90 |
||
|
22
|
22
13156-23000-000
Gasket
|
13156-23000-000 |
— | ||
| replacement | |||||
|
22
|
22
13156-23010-000
GASKET,REED VALVE
|
13156-23010-000 |
— | ||
|
23
|
23
02122-05208-000
Screw 5x20 cros
|
02122-05208-000 |
— | ||
| replacement | |||||
|
23
|
23
02122-0520A-000 SCREW |
02122-0520A-000 |
from US $0.80 |
||
|
24
|
24
21111-35300-000
Gear, primary drive (nt:22)
Gear, primary drive (nt:22); |
21111-35300-000 |
— | ||
| replacement | |||||
|
24
|
24
21111-35302-000
Gear, primary drive (nt:22)
Gear, primary drive (nt:22); |
21111-35302-000 |
— | ||
|
25
|
25
09166-14008-000 WASHER |
09166-14008-000 |
US $13.20 |
||
|
26
|
26
09140-14002-000 NUTNut |
09140-14002-000 |
from US $4.64 |
||
|
27
|
27
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $0.81 |
||
