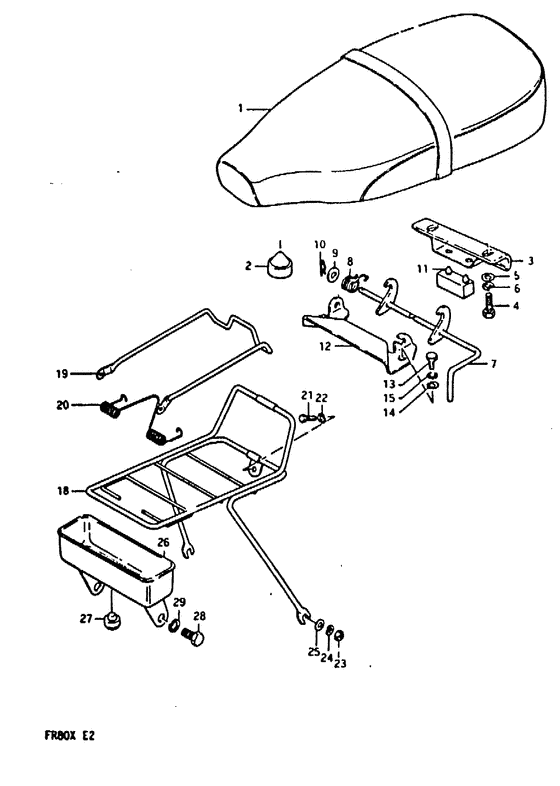

Double seat (E12) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-35003-866
Seat assy (black)
Seat assy (black); |
45100-35003-866 |
— | ||
| replacements | |||||
|
1
|
1
09200-08006-000 PINSeat assy (black); |
09200-08006-000 |
from US $0.14 |
||
|
1
|
1
09385-06001-000 CLIPSeat assy (black); |
09385-06001-000 |
from US $4.69 |
||
|
1
|
1
45100-35012-48F
Seat assy
Seat assy (black); |
45100-35012-48F |
— | ||
|
1
|
1
08322-01087-000 WASHERLock washer Seat assy (black); |
08322-01087-000 |
from US $0.76 |
||
|
1
|
1
08322-11088-000
Washer
Seat assy (black); |
08322-11088-000 |
— | ||
|
2
|
2
09321-14001-000 CUSHIONCushion, seat; |
09321-14001-000 |
US $17.30 |
||
|
3
|
3
45230-27200-000
BRACKET,SEAT CLAMP GUIDE
|
45230-27200-000 |
— | ||
|
4
|
4
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
5
|
5
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
45210-27201-000
SHAFT,SEAT CLAMP
|
45210-27201-000 |
— | ||
|
8
|
8
09448-12004-000
Spring
|
09448-12004-000 |
— | ||
| replacement | |||||
|
8
|
8
09448-12004-XC0
SPRING
|
09448-12004-XC0 |
— | ||
|
9
|
9
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
10
|
10
09385-06001-000 CLIP |
09385-06001-000 |
from US $4.69 |
||
|
11
|
11
09321-08006-000 CUSHIONCushion Cushion, seat; |
09321-08006-000 |
from US $1.82 |
||
|
12
|
12
45221-27200-000
Bracket, seat rear
|
45221-27200-000 |
— | ||
|
13
|
13
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
14
|
14
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
15
|
15
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
16
|
16
45511-35600-000
Cover, seat number
Local parts, not shown |
45511-35600-000 |
— | ||
|
17
|
17
45512-35600-000
Plate, seat number
Local parts, not shown |
45512-35600-000 |
— | ||
|
18
|
18
46410-35201-000
Carrier, front
|
46410-35201-000 |
— | ||
| replacement | |||||
|
18
|
18
46410-35202-000
CARRIER,FR LUGGAGE
|
46410-35202-000 |
— | ||
|
19
|
19
46416-35200-000
ROD,FR LUGGAGE CARRIER UPR
|
46416-35200-000 |
— | ||
|
20
|
20
09448-11003-000
Spring
|
09448-11003-000 |
— | ||
|
21
|
21
01107-06308-000
Bolt
|
01107-06308-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-06307-000 Bolt |
01500-06307-000 |
from US $0.80 |
||
|
22
|
22
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
23
|
23
08313-11088-000
Nut
|
08313-11088-000 |
— | ||
| replacement | |||||
|
23
|
23
08313-10087-000 NUT |
08313-10087-000 |
from US $3.59 |
||
|
24
|
24
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
25
|
25
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
|
26
|
26
41550-35600-000
Holder, tool
|
41550-35600-000 |
— | ||
|
27
|
27
09321-05010-000
CUSHION
|
09321-05010-000 |
— | ||
| replacement | |||||
|
27
|
27
09321-05023-000 Cushion |
09321-05023-000 |
from US $1.67 |
||
|
28
|
28
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
28
|
28
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
29
|
29
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
29
|
29
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
