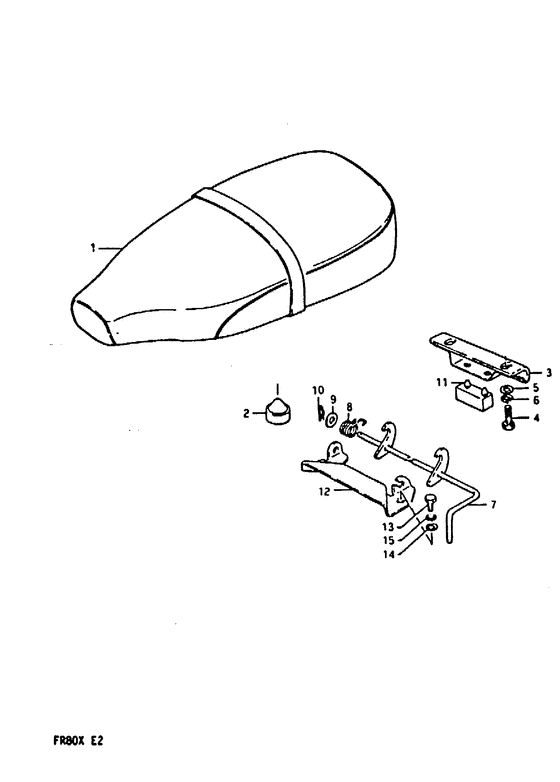

Double seat (E14, e95) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-35003-866
Seat assy (black)
Seat assy (black); |
45100-35003-866 |
— | ||
| replacements | |||||
|
1
|
1
09200-08006-000 PINSeat assy (black); |
09200-08006-000 |
from US $0.14 |
||
|
1
|
1
09385-06001-000 CLIPSeat assy (black); |
09385-06001-000 |
from US $4.69 |
||
|
1
|
1
45100-35012-48F
Seat assy
Seat assy (black); |
45100-35012-48F |
— | ||
|
1
|
1
08322-01087-000 WASHERLock washer Seat assy (black); |
08322-01087-000 |
from US $0.76 |
||
|
1
|
1
08322-11088-000
Washer
Seat assy (black); |
08322-11088-000 |
— | ||
|
2
|
2
09321-14001-000 CUSHIONCushion, seat; |
09321-14001-000 |
US $17.30 |
||
|
3
|
3
45230-27200-000
BRACKET,SEAT CLAMP GUIDE
|
45230-27200-000 |
— | ||
|
4
|
4
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
5
|
5
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
45210-27201-000
SHAFT,SEAT CLAMP
|
45210-27201-000 |
— | ||
|
8
|
8
09448-12004-000
Spring
|
09448-12004-000 |
— | ||
| replacement | |||||
|
8
|
8
09448-12004-XC0
SPRING
|
09448-12004-XC0 |
— | ||
|
9
|
9
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
10
|
10
09385-06001-000 CLIP |
09385-06001-000 |
from US $4.69 |
||
|
11
|
11
09321-08006-000 CUSHIONCushion Cushion, seat; |
09321-08006-000 |
from US $1.82 |
||
|
12
|
12
45221-27200-000
Bracket, seat rear
|
45221-27200-000 |
— | ||
|
13
|
13
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
14
|
14
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
15
|
15
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
