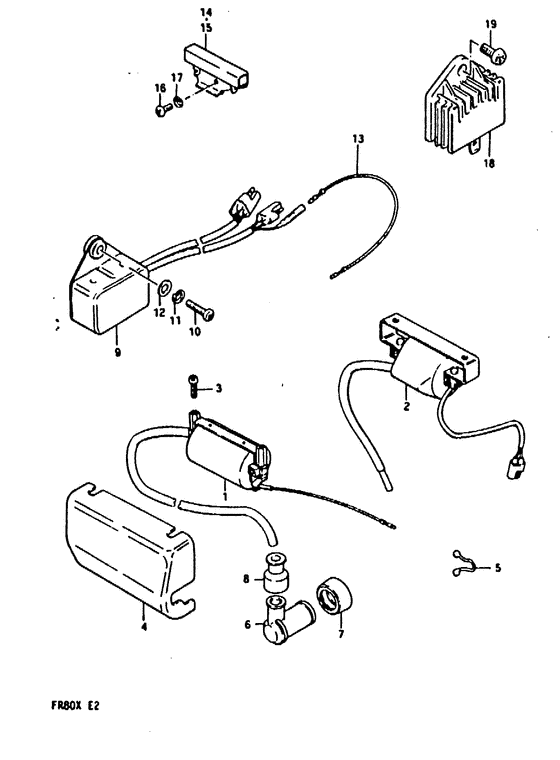

Electrical Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-19011-000
Coil assy, ignition
|
33410-19011-000 |
— | ||
| replacement | |||||
|
1
|
1
33410-19012-000
Coil assy,ignition
|
33410-19012-000 |
— | ||
|
3
|
3
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
4
|
4
33444-35001-000
Cover, ignition coil
|
33444-35001-000 |
— | ||
|
5
|
5
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
6
|
6
33510-22010-000 CAP ASSY,SPARK PLUG |
33510-22010-000 |
from US $10.34 |
||
| replacement | |||||
|
6
|
6
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
7
|
7
33541-69010-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-69010-000 |
from US $4.86 |
||
|
8
|
8
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
8
|
8
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
18
|
18
32500-43200-000
Regulator, voltage
Regulator assy, voltage; |
32500-43200-000 |
— | ||
| replacement | |||||
|
18
|
18
32500-43201-000
REGULATOR ASSY,VOLTAGE
Regulator assy, voltage; |
32500-43201-000 |
— | ||
|
19
|
19
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
