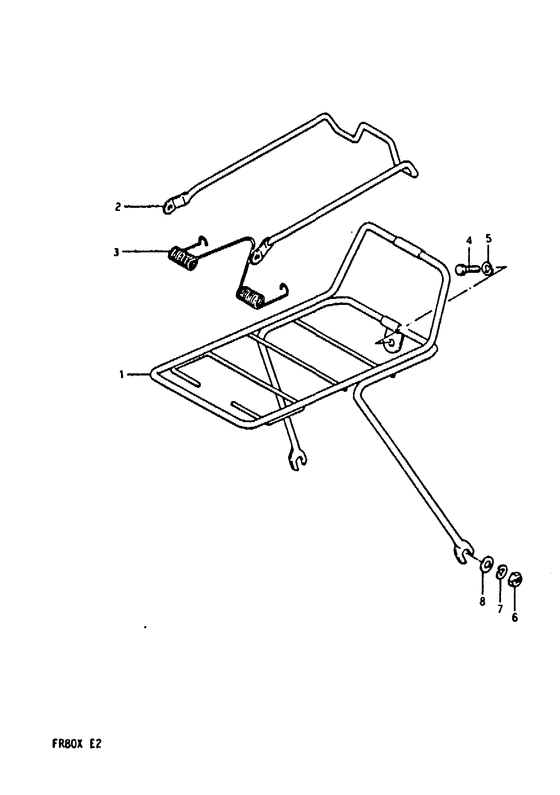

Front carrier (E95) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46410-35201-000
Carrier, front
|
46410-35201-000 |
— | ||
| replacement | |||||
|
1
|
1
46410-35202-000
CARRIER,FR LUGGAGE
|
46410-35202-000 |
— | ||
|
2
|
2
46416-35200-000
ROD,FR LUGGAGE CARRIER UPR
|
46416-35200-000 |
— | ||
|
3
|
3
09448-11003-000
Spring
|
09448-11003-000 |
— | ||
|
4
|
4
01107-06308-000
Bolt
|
01107-06308-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06307-000 Bolt |
01500-06307-000 |
from US $0.80 |
||
|
5
|
5
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
6
|
6
08313-11088-000
Nut
|
08313-11088-000 |
— | ||
| replacement | |||||
|
6
|
6
08313-10087-000 NUT |
08313-10087-000 |
from US $3.59 |
||
|
7
|
7
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
8
|
8
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
