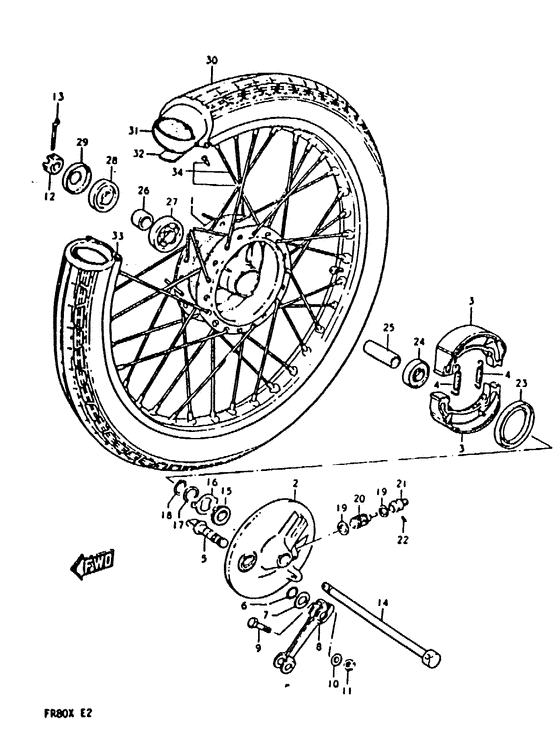

Front wheel Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-46001-000
Drum, front hub
|
54110-46001-000 |
— | ||
| replacement | |||||
|
1
|
1
54110-46002-000 HUB,FR WHEELDrum, front hub |
54110-46002-000 |
US $118.13 |
||
|
2
|
2
54210-35002-000
Panel, front hub
|
54210-35002-000 |
— | ||
| replacements | |||||
|
2
|
2
54210-35004-000
PANEL,FR BRAKE ANCHOR
|
54210-35004-000 |
— | ||
|
2
|
2
54632-02201-000 BUSH,SPEEDOMETER PINION OUTERBushing, pinion |
54632-02201-000 |
from US $10.21 |
||
|
3
|
3
54410-35020-000
Shoe, brake
|
54410-35020-000 |
— | ||
| replacement | |||||
|
3
|
3
54400-30821-000
SHOE SET,BRAKE
|
54400-30821-000 |
— | ||
|
4
|
4
09443-07001-000 SPRING(L:34) |
09443-07001-000 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
09443-07025-000 SPRING(L:35.8) |
09443-07025-000 |
from US $1.52 |
||
|
5
|
5
54441-29302-000
Shaft, brake cam
|
54441-29302-000 |
— | ||
| replacement | |||||
|
5
|
5
54441-29305-000 CAM,BRAKEShaft, brake cam |
54441-29305-000 |
from US $11.70 |
||
|
6
|
6
09280-14003-000 O ring |
09280-14003-000 |
from US $2.66 |
||
| replacement | |||||
|
6
|
6
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
7
|
7
09160-14001-000 Washer |
09160-14001-000 |
US $2.28 |
||
| replacement | |||||
|
7
|
7
09160-14055-000 WASHER(14.5X22X1.6) |
09160-14055-000 |
from US $3.77 |
||
|
8
|
8
54451-35000-000 LEVER,FR BRAKE CAM |
54451-35000-000 |
US $8.68 |
||
|
9
|
9
09100-06078-000 BOLT(6X33) |
09100-06078-000 |
from US $1.41 |
||
|
10
|
10
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
11
|
11
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
12
|
12
08314-31108-000
10mm castle nut
|
08314-31108-000 |
— | ||
| replacement | |||||
|
12
|
12
08314-3110A-000 NUT |
08314-3110A-000 |
from US $3.15 |
||
|
13
|
13
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
US $1.16 |
||
| replacement | |||||
|
13
|
13
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
14
|
14
54711-03601-000
Axle, front
|
54711-03601-000 |
— | ||
| replacement | |||||
|
14
|
14
54711-03602-000 AXLE,FRAxle, front |
54711-03602-000 |
US $14.06 |
||
|
15
|
15
54611-03001-000
Gear, speedometer drive
Nt:24 |
54611-03001-000 |
— | ||
| replacement | |||||
|
15
|
15
54611-03002-000 GEAR,SPEEDOMETER(NT:24)Gear, speedometer drive Nt:24 |
54611-03002-000 |
US $15.01 |
||
|
16
|
16
54661-03000-000 DRIVER,SPEEDOMETER GEARDriver, speedometer Driver, speedometer gear; |
54661-03000-000 |
US $2.83 |
||
|
17
|
17
09160-16005-000 WASHER(16X22X1)Thrust washer (16x22x1) Washer (16*22*1); |
09160-16005-000 |
US $1.12 |
||
|
18
|
18
08331-31159-000
Circlip
|
08331-31159-000 |
— | ||
| replacement | |||||
|
18
|
18
08331-3115A-000 CIRCLIP |
08331-3115A-000 |
from US $0.91 |
||
|
19
|
19
09160-05001-000
Speedo thrust w
Washer (5.1*9*0.4); |
09160-05001-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-05001-A05 WASHER(5.1X9X0.4)Washer (5.1*9*0.4); |
09160-05001-A05 |
from US $1.12 |
||
|
20
|
20
54621-03001-000 PINION,SPEEDOMETER(NT:10)Pinion, speedometer (nt:10) |
54621-03001-000 |
US $11.89 |
||
|
21
|
21
54632-01001-000 BUSH,METER GEAR OUTERBushing, outer Outer bushing, driven gear; |
54632-01001-000 |
from US $14.69 |
||
|
22
|
22
09134-03101-000
Bush lock screw
|
09134-03101-000 |
— | ||
| replacement | |||||
|
22
|
22
09134-03101-A05 SCREW(3X4.3) |
09134-03101-A05 |
from US $2.45 |
||
|
23
|
23
09285-43001-000
Oil seal
|
09285-43001-000 |
— | ||
| replacement | |||||
|
23
|
23
09283-43004-000 SEAL,OIL(43X58X7) |
09283-43004-000 |
from US $6.59 |
||
|
24
|
24
08143-63007-000
BEARING
Bearing, lh; |
08143-63007-000 |
— | ||
| replacement | |||||
|
24
|
24
08143-6300B-000 BearingBearing, lh; |
08143-6300B-000 |
from US $11.92 |
||
|
25
|
25
09180-10005-000
Spacer, hub
|
09180-10005-000 |
— | ||
| replacement | |||||
|
25
|
25
09180-10148-000 SPACER(10.1X16X51)Spacer, hub (10.1x16x51) |
09180-10148-000 |
from US $10.44 |
||
|
26
|
26
09180-10003-000
SPACER(10X15X12.4)
Spacer, axle (10*15*12.4); |
09180-10003-000 |
— | ||
|
27
|
27
08113-62000-000 BEARINGBearing, propeller shaft Bearing, rh; |
08113-62000-000 |
from US $7.95 |
||
|
28
|
28
09284-15001-000 SEAL,OIL(15X31X5)Oil seal (15x31x9.50) |
09284-15001-000 |
from US $2.24 |
||
|
29
|
29
54892-01000-000
Hub drum dust k
|
54892-01000-000 |
— | ||
| replacement | |||||
|
29
|
29
54892-0100V-000
COVER,FR HUB DUST SEAL
|
54892-0100V-000 |
— | ||
|
30
|
30
55100-01012-000
Tire, front (2.25-17)
Tire, front (2.25-17); |
55100-01012-000 |
— | ||
|
31
|
31
55200-01011-000
Tube, inner
|
55200-01011-000 |
— | ||
| replacement | |||||
|
31
|
31
55200-03600-000 TUBE ASSY,WHEEL INNERTube assy, inner |
55200-03600-000 |
US $19.69 |
||
|
32
|
32
55261-01010-000 Protector, inner tube |
55261-01010-000 |
US $5.46 |
||
| replacement | |||||
|
32
|
32
55261-02B40-000 PROTECTOR,WHL INR TUBEProtector, inner tube |
55261-02B40-000 |
from US $3.28 |
||
|
33
|
33
55311-01021-000 RIM,WHEEL(17X1.20)Wheel rim Wheel rim; |
55311-01021-000 |
from US $58.14 |
||
|
34
|
34
55301-01812-000
Spoke Set, Front
|
55301-01812-000 |
— | ||
| replacement | |||||
|
34
|
34
55320-01012-000 SPOKE SET,FRSpoke set, front wheel |
55320-01012-000 |
from US $27.23 |
||
