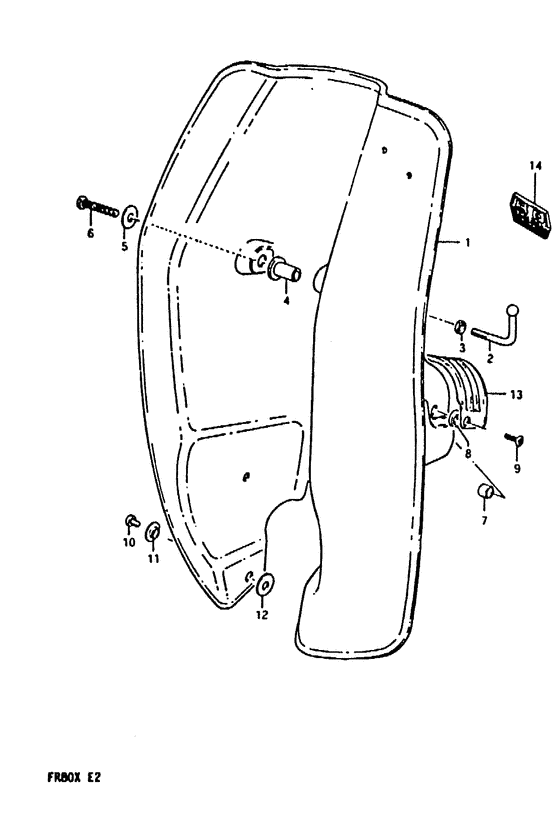

Leg shield (E12, e95) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48111-35002-189
SHIELD,LEG(WHITE)
Leg shield (white); |
48111-35002-189 |
— | ||
|
2
|
2
46591-35701-000
HOLDER,BACK
|
46591-35701-000 |
— | ||
|
3
|
3
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
3
|
3
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
4
|
4
48198-35001-000
SPACER
|
48198-35001-000 |
— | ||
|
5
|
5
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $1.12 |
||
|
6
|
6
02112-06358-000
Screw
|
02112-06358-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06357-000 SCREW |
02112-06357-000 |
from US $0.80 |
||
|
7
|
7
09180-10045-000 SPACER(10.8X14X8.5) |
09180-10045-000 |
US $20.20 |
||
|
8
|
8
09320-14005-000
CUSHION
|
09320-14005-000 |
— | ||
|
9
|
9
02142-06207-000 SCREW |
02142-06207-000 |
from US $0.80 |
||
|
10
|
10
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.18 |
||
|
11
|
11
09169-06016-000 WASHERWasher Washer; |
09169-06016-000 |
from US $1.52 |
||
|
12
|
12
09160-06004-000
Washer (6.5x24x1.6)
|
09160-06004-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-06134-000 WASHER(6.5X24X1.6)Washer, holder |
09160-06134-000 |
from US $0.96 |
||
|
13
|
13
48241-35701-000
Moulding
|
48241-35701-000 |
— | ||
|
14
|
14
68161-35030-000
Emblem, "80"
|
68161-35030-000 |
— | ||
