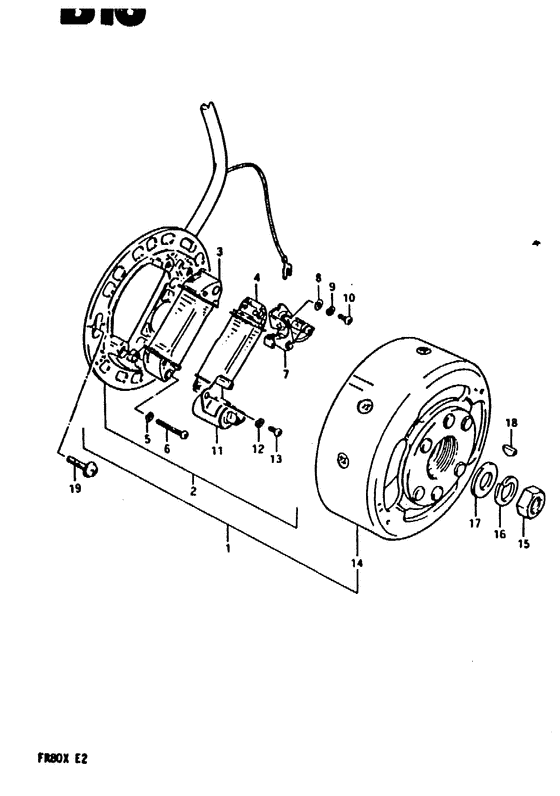

Magneto (E12, e14, e95) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-39131-000
Magneto assy
|
32100-39131-000 |
— | ||
| replacement | |||||
|
1
|
1
32102-39131-000
ROTOR ASSY
|
32102-39131-000 |
— | ||
|
2
|
2
32101-48620-000
Stator assy
|
32101-48620-000 |
— | ||
|
3
|
3
32120-48620-000
Coil, lighting
|
32120-48620-000 |
— | ||
|
4
|
4
32140-48010-000
COIL,PRIMARY
|
32140-48010-000 |
— | ||
|
5
|
5
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
6
|
6
02112-04308-000
Screw
|
02112-04308-000 |
— | ||
| replacement | |||||
|
6
|
6
09125-04023-000 SCREW(4X30)Screw (4x30) |
09125-04023-000 |
from US $3.15 |
||
|
7
|
7
32240-43012-000 POINT ASSY,CONTACTPoint, contact Point assy, contact; |
32240-43012-000 |
US $44.12 |
||
|
8
|
8
08322-21048-000
Washer
|
08322-21048-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-01047-000 WASHER |
08322-01047-000 |
from US $0.80 |
||
|
9
|
9
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
10
|
10
09125-04001-000 SCREW(4X10)Screw (4x10) |
09125-04001-000 |
from US $2.53 |
||
|
11
|
11
32341-43012-000
CONDENSER
Condenser; |
32341-43012-000 |
— | ||
|
12
|
12
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
13
|
13
02112-04088-000
Screw
|
02112-04088-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.41 |
||
|
14
|
14
32102-39131-000
ROTOR ASSY
|
32102-39131-000 |
— | ||
|
15
|
15
09140-10003-000
Magneto fitting nut
|
09140-10003-000 |
— | ||
| replacement | |||||
|
15
|
15
09140-10041-000 NUT |
09140-10041-000 |
from US $2.24 |
||
|
16
|
16
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
17
|
17
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
18
|
18
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $0.81 |
||
|
19
|
19
09139-05011-000 SCREW(5X14)Screw |
09139-05011-000 |
from US $1.52 |
||
