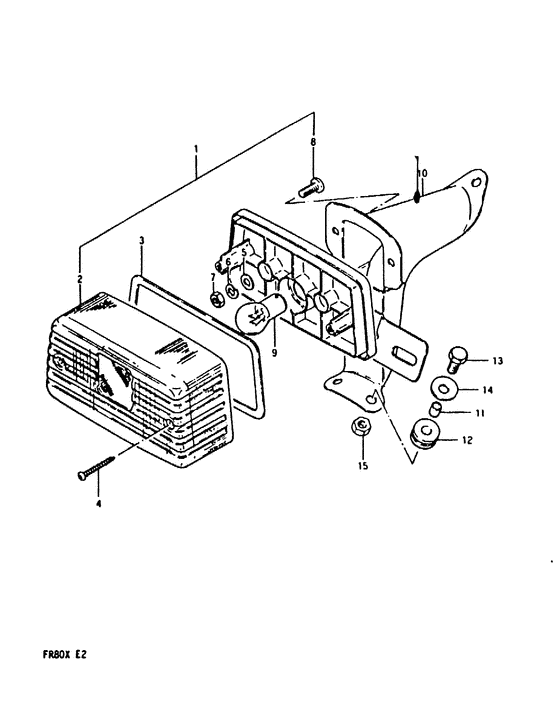

Rear combination lamp (E12, e95) Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35720-35310-999 LAMP UNIT,RR COMBNATION |
35720-35310-999 |
US $67.71 |
||
|
2
|
2
35712-35300-000
Lens
|
35712-35300-000 |
— | ||
| replacements | |||||
|
2
|
2
35712-35340-000 LENS |
35712-35340-000 |
US $46 |
||
|
2
|
2
35719-353A0-000 LENS,UNDER |
35719-353A0-000 |
US $66.61 |
||
|
3
|
3
35713-35300-000 GASKET |
35713-35300-000 |
US $5.46 |
||
|
4
|
4
03211-04358-000
Screw
|
03211-04358-000 |
— | ||
|
5
|
5
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
6
|
6
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
7
|
7
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-00057-000 NUT |
08310-00057-000 |
from US $0.32 |
||
|
8
|
8
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
9
|
9
09471-06008-000 BULB(6V10/3W,STANLEY,A4854H)Bulb (6v, 10/3w); |
09471-06008-000 |
US $42.70 |
||
|
10
|
10
35730-35300-000
BRACKET UNIT,TAIL LAMP
|
35730-35300-000 |
— | ||
|
11
|
11
35766-35300-000 SPACER,RR COMBINATION |
35766-35300-000 |
US $1.21 |
||
|
12
|
12
35765-35300-000 CUSHION,RR COMBINATION |
35765-35300-000 |
from US $2.36 |
||
|
13
|
13
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
14
|
14
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $1.12 |
||
|
15
|
15
08316-16068-000
Nut
|
08316-16068-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.60 |
||
