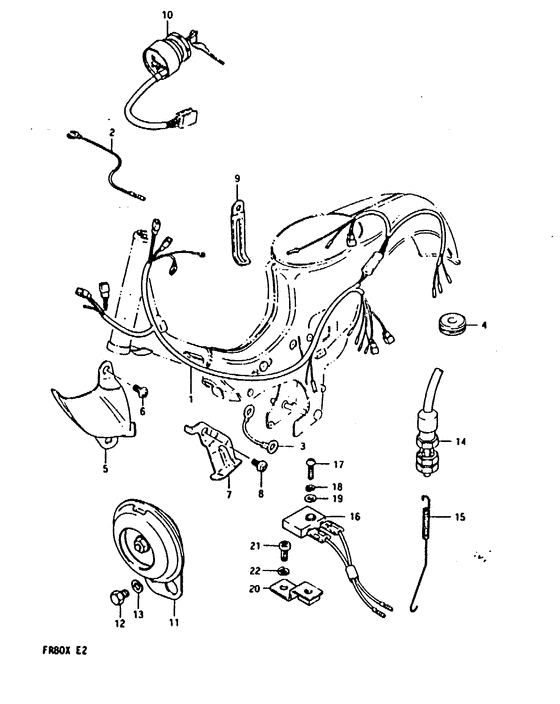

Wiring harness Diagram Suzuki FR80
- Year
- 1999
- Model code
- FR80X X
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-35615-000
Wiring harness
|
36610-35615-000 |
— | ||
|
2
|
2
36851-46200-000
Lead wire, front arth
Lead wire, handle earth; |
36851-46200-000 |
— | ||
| replacement | |||||
|
2
|
2
36851-45100-000 LEAD WIRE,EARTHLead wire, earth Lead wire, handle earth; |
36851-45100-000 |
from US $1.82 |
||
|
3
|
3
36851-35600-000
Lead wire, engine earth
|
36851-35600-000 |
— | ||
|
4
|
4
09308-05011-000 GROMMETGrommet, wiring harness; |
09308-05011-000 |
US $9.20 |
||
|
5
|
5
36652-35003-000
CLAMP,WIRING HARNESS
|
36652-35003-000 |
— | ||
|
6
|
6
02112-06068-000
6 x 6 cross scr
|
02112-06068-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06067-000 SCREW |
02112-06067-000 |
from US $3.04 |
||
|
7
|
7
36653-35002-000
CLAMP
|
36653-35002-000 |
— | ||
|
8
|
8
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
9
|
9
09404-06412-000
Clamp
|
09404-06412-000 |
— | ||
| replacements | |||||
|
9
|
9
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
9
|
9
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
10
|
10
37110-35040-000
Switch assy, ignition
|
37110-35040-000 |
— | ||
|
11
|
11
38500-35070-000
Horn
|
38500-35070-000 |
— | ||
| replacement | |||||
|
11
|
11
38500-35038-000
HORN ASSY
|
38500-35038-000 |
— | ||
|
12
|
12
09100-06011-000 BOLT(6X8)Bolt (6x8) |
09100-06011-000 |
from US $1.60 |
||
|
13
|
13
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
14
|
14
37740-04571-000
Switch assy, stop lamp
|
37740-04571-000 |
— | ||
| replacement | |||||
|
14
|
14
37740-48071-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp |
37740-48071-000 |
from US $20 |
||
|
15
|
15
09443-06031-000 SPRING |
09443-06031-000 |
from US $6.24 |
||
|
16
|
16
32800-19063-000
Rectifier
|
32800-19063-000 |
— | ||
| replacements | |||||
|
16
|
16
32800-16A00-000 Rectifier AssyRectifier assy |
32800-16A00-000 |
from US $15.97 |
||
|
16
|
16
32880-19X50-000 WIRE,RECTIFIER |
32880-19X50-000 |
from US $7.29 |
||
|
17
|
17
02112-05208-000
Screw
|
02112-05208-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-05207-000 SCREW |
02112-05207-000 |
from US $3.11 |
||
|
18
|
18
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
19
|
19
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
