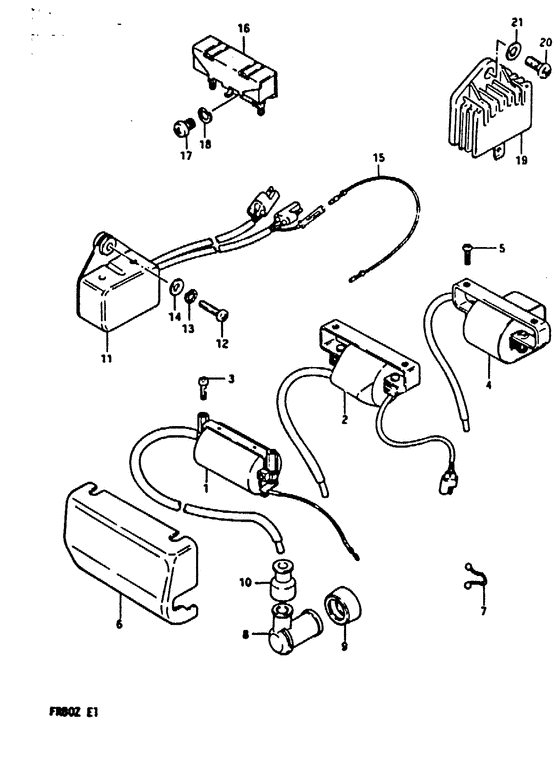

Electrical Diagram Suzuki FR80
- Year
- 1982
- Model code
- FR80Z Z
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-19011-000
Coil assy, ignition
|
33410-19011-000 |
— | ||
| replacement | |||||
|
1
|
1
33410-19012-000
Coil assy,ignition
|
33410-19012-000 |
— | ||
|
3
|
3
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
4
|
4
33410-35330-000 UNIT & COIL ASSY,IGNITIONUnit & coil assy, ignition E2 |
33410-35330-000 |
US $218.96 |
||
|
5
|
5
02112-05108-000
Screw
|
02112-05108-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-05107-000 SCREWScrew, bracket |
02112-05107-000 |
from US $0.80 |
||
|
6
|
6
33444-35001-000
Cover, ignition coil
|
33444-35001-000 |
— | ||
|
7
|
7
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
8
|
8
33510-22010-000 CAP ASSY,SPARK PLUG |
33510-22010-000 |
from US $10.34 |
||
| replacement | |||||
|
8
|
8
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
9
|
9
33541-69010-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-69010-000 |
from US $4.86 |
||
|
10
|
10
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
10
|
10
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
16
|
16
36510-30600-000 RESISTOR ASSY,LAMP(2 OHM)Resistor, safety; |
36510-30600-000 |
US $26.31 |
||
|
17
|
17
02112-06108-000
Screw
|
02112-06108-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-06107-000 SCREW |
02112-06107-000 |
from US $0.76 |
||
|
18
|
18
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
19
|
19
32500-02110-000
Regulator assy, voltage
E2 |
32500-02110-000 |
— | ||
| replacement | |||||
|
19
|
19
32500-02111-000
REGULATOR ASSY,VOLTAGE
E2 |
32500-02111-000 |
— | ||
|
20
|
20
02112-06128-000
Screw
E2 |
02112-06128-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-06127-000 SCREWE2 |
02112-06127-000 |
from US $0.76 |
||
|
21
|
21
08322-21058-000
Washer
E2 |
08322-21058-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01057-000 WASHERWasher, front hook holder E2 |
08322-01057-000 |
from US $0.80 |
||
