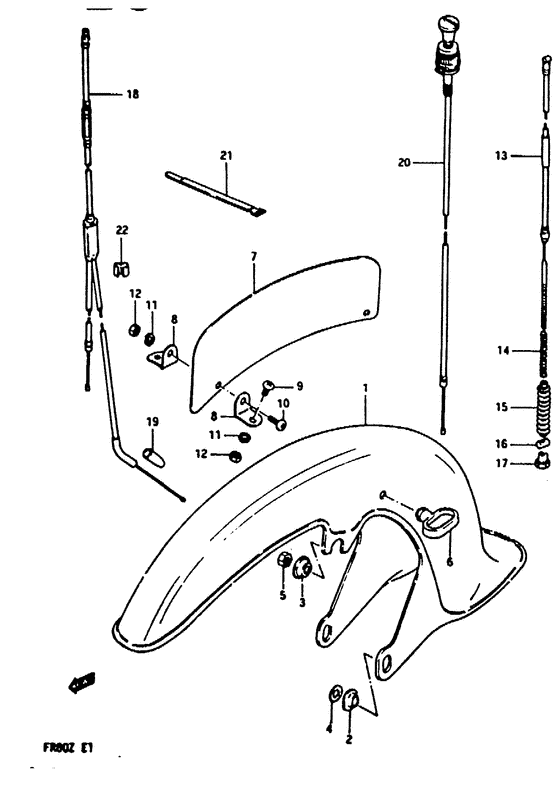

Front fender Diagram Suzuki FR80
- Year
- 1982
- Model code
- FR80Z Z
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-35020-061
Fender, front
|
53111-35020-061 |
— | ||
|
1
|
1
53111-35020-04Y
Fender, front
|
53111-35020-04Y |
— | ||
|
2
|
2
09169-11003-000
Lock washer
|
09169-11003-000 |
— | ||
| replacement | |||||
|
2
|
2
09169-11003-XC0
WASHER
|
09169-11003-XC0 |
— | ||
|
3
|
3
09164-08012-000 WASHER |
09164-08012-000 |
from US $3.62 |
||
|
4
|
4
09160-10041-000
Rear fender was
Washer (10.3*25*1.5); |
09160-10041-000 |
— | ||
|
5
|
5
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
6
|
6
58621-21203-000
Guide,cable
Guide, cable; |
58621-21203-000 |
— | ||
| replacement | |||||
|
6
|
6
58621-21204-000 GUIDE,CABLEGuide, cable; |
58621-21204-000 |
from US $7.75 |
||
|
13
|
13
58100-26000-000 CABLE ASSY,FR BRAKE(L:1175)Cable assy, front brake |
58100-26000-000 |
US $27.05 |
||
|
14
|
14
09440-06003-000 SPRINGSpring Spring; |
09440-06003-000 |
from US $1.98 |
||
|
15
|
15
09287-07001-000 SEAL,DUST(7X16X75)Dust seal |
09287-07001-000 |
from US $1.98 |
||
|
16
|
16
09209-10001-000 PIN,10X19 |
09209-10001-000 |
from US $2.13 |
||
|
17
|
17
09150-05101-000 NUT |
09150-05101-000 |
from US $1.98 |
||
|
18
|
18
58300-35000-000 Cable assy,throttleCable, throttle; |
58300-35000-000 |
US $23.18 |
||
|
19
|
19
09287-07002-000
SEAL,DUST(7X18X30)
|
09287-07002-000 |
— | ||
| replacement | |||||
|
19
|
19
09287-07006-000 Seal,dust |
09287-07006-000 |
from US $3.15 |
||
|
20
|
20
58400-35010-000
Cable, starter
|
58400-35010-000 |
— | ||
| replacement | |||||
|
20
|
20
58400-35011-000 CABLE ASSY,STARTER |
58400-35011-000 |
US $17 |
||
|
21
|
21
09407-25301-000
CLAMP(L:250)
Band, cable; |
09407-25301-000 |
— | ||
| replacement | |||||
|
21
|
21
09407-25302-000
New Genuine Part
Band, cable; |
09407-25302-000 |
— | ||
|
22
|
22
09408-00002-000 CLIPClip, cable |
09408-00002-000 |
from US $1.76 |
||
