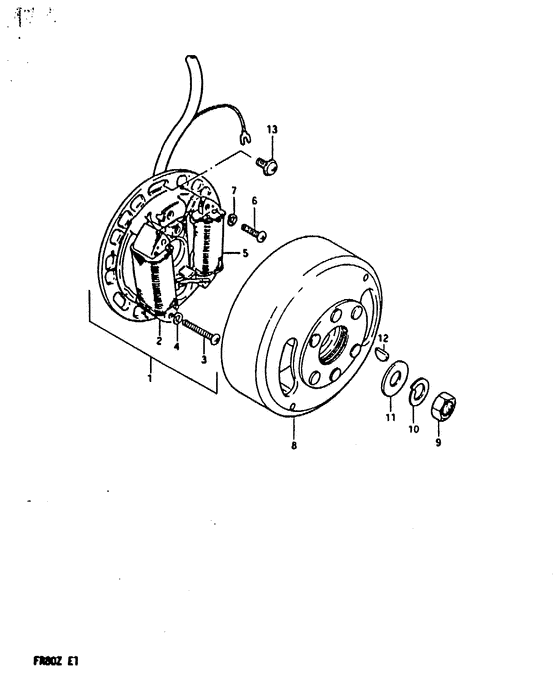

Magneto (E2) Diagram Suzuki FR80
- Year
- 1982
- Model code
- FR80Z Z
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-35330-000
STATOR ASSY
|
32101-35330-000 |
— | ||
|
2
|
2
32120-23012-000
COIL,LIGHTING
|
32120-23012-000 |
— | ||
|
3
|
3
02112-04308-000
Screw
|
02112-04308-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-04023-000 SCREW(4X30)Screw (4x30) |
09125-04023-000 |
from US $3.15 |
||
|
4
|
4
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
5
|
5
32140-04510-000 COIL,PRIMARY |
32140-04510-000 |
US $42.69 |
||
|
6
|
6
02112-04208-000
Screw
|
02112-04208-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0420A-000 SCREW |
02112-0420A-000 |
from US $0.80 |
||
|
7
|
7
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
8
|
8
32102-35330-000
Rotor
Rotor, flywheel; |
32102-35330-000 |
— | ||
| replacement | |||||
|
8
|
8
32102-46320-000 ROTOR ASSYRutor Rotor, flywheel; |
32102-46320-000 |
US $132.85 |
||
|
9
|
9
09140-10003-000
Magneto fitting nut
|
09140-10003-000 |
— | ||
| replacement | |||||
|
9
|
9
09140-10041-000 NUT |
09140-10041-000 |
from US $2.24 |
||
|
10
|
10
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
11
|
11
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
12
|
12
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $0.81 |
||
|
13
|
13
09139-05011-000 SCREW(5X14)Screw |
09139-05011-000 |
from US $1.52 |
||
