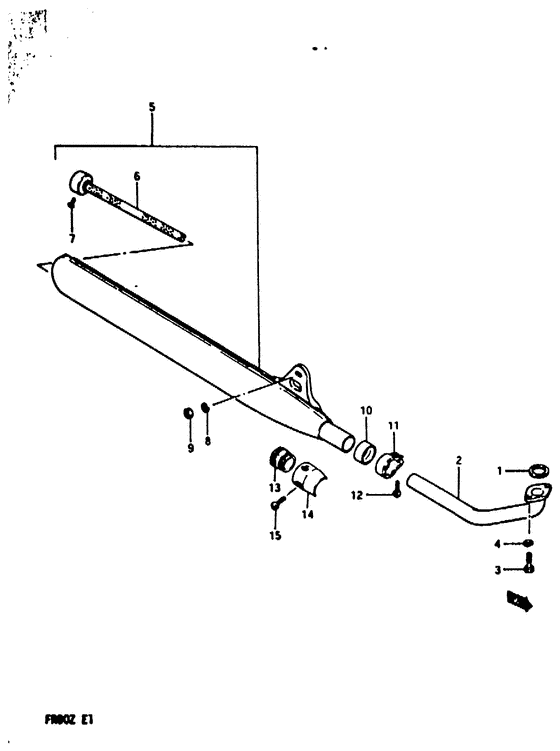

Muffler Diagram Suzuki FR80
- Year
- 1982
- Model code
- FR80Z Z
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-05020-000
Gasket (asb)
|
14181-05020-000 |
— | ||
| replacement | |||||
|
1
|
1
14181-18C00-000 GASKET,EXHAUSTGasket, exhaust pipe |
14181-18C00-000 |
from US $4.10 |
||
|
2
|
2
14150-35600-000
Pipe, exhaust
|
14150-35600-000 |
— | ||
|
3
|
3
09128-08002-000
Bolt
Screw; |
09128-08002-000 |
— | ||
| replacement | |||||
|
3
|
3
09137-08002-000
BOLT(8X27)
Screw; |
09137-08002-000 |
— | ||
|
4
|
4
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
5
|
5
14301-35612-000
Muffler assy
|
14301-35612-000 |
— | ||
|
6
|
6
14510-06104-000
Pipe, baffle
|
14510-06104-000 |
— | ||
| replacement | |||||
|
6
|
6
14510-23040-000
PIPE,BAFFLE
|
14510-23040-000 |
— | ||
|
7
|
7
02112-05068-000
Screw
|
02112-05068-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-05122-000 SCREW(5X6) |
09125-05122-000 |
from US $0.91 |
||
|
8
|
8
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
10
|
10
14771-23090-000
CONNECTOR,MUFFLER
Connector, muffler; |
14771-23090-000 |
— | ||
|
11
|
11
09402-33701-000
Clamp
|
09402-33701-000 |
— | ||
|
12
|
12
01517-06258-000
Bolt
|
01517-06258-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.91 |
||
