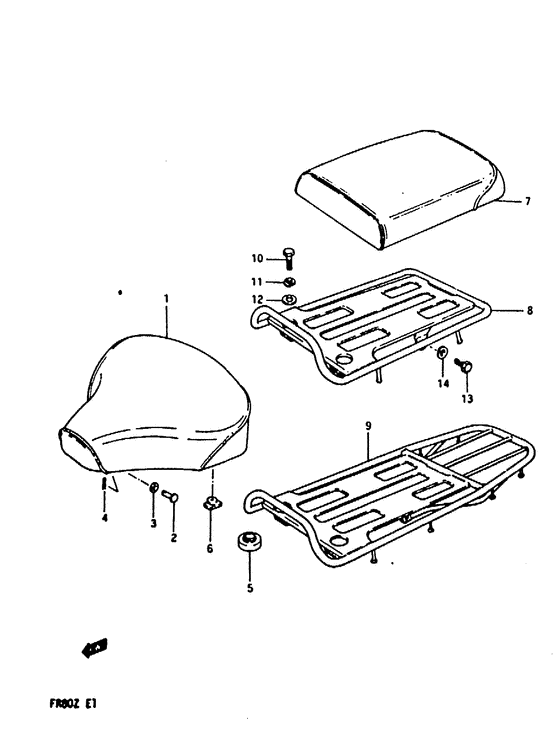

Single seat Diagram Suzuki FR80
- Year
- 1982
- Model code
- FR80Z Z
- Engine Capacity
- 80
- Model
- FR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-35010-866
Seat assy (black)
Seat assy (black); |
45100-35010-866 |
— | ||
| replacement | |||||
|
1
|
1
45100-35012-48F
Seat assy
Seat assy (black); |
45100-35012-48F |
— | ||
|
2
|
2
09200-08006-000 PIN |
09200-08006-000 |
from US $0.14 |
||
|
3
|
3
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
3
|
3
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
4
|
4
09385-06001-000 CLIP |
09385-06001-000 |
from US $4.69 |
||
|
5
|
5
09321-14003-000
CUSHION
Cushion, no. 1; |
09321-14003-000 |
— | ||
|
6
|
6
09329-10001-000 CUSHIONCushion, no. 2; |
09329-10001-000 |
from US $1.82 |
||
|
7
|
7
45300-06310-866
Seat, pillion (black)
Seat, pillion (black); |
45300-06310-866 |
— | ||
| replacement | |||||
|
7
|
7
45300-06360-48H SEAT SET,PILLIONSeat, pillion (black); |
45300-06360-48H |
US $294.40 |
||
|
8
|
8
46110-35001-000
CARRIER,LUGGAGE
|
46110-35001-000 |
— | ||
|
10
|
10
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
11
|
11
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
12
|
12
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
13
|
13
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
14
|
14
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
