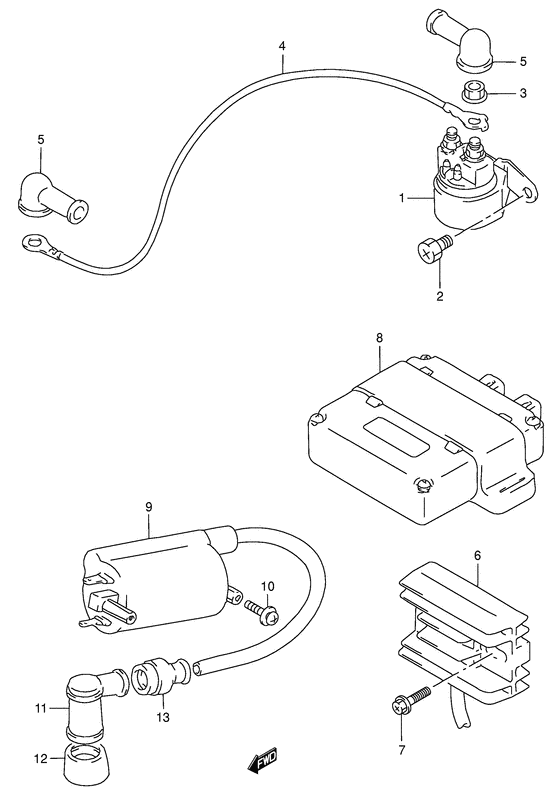

Electrical Diagram Suzuki GN125
- Year
- 1998
- Model code
- GN125EW(E28) W
- Engine Capacity
- 125
- Model
- GN125E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-49100-000 RELAY ASSY,STARTING MOTORRelay, starting motor Relay, starting motor; |
31800-49100-000 |
from US $85.36 |
||
|
2
|
2
09128-06004-000 SCREW(6X10) |
09128-06004-000 |
from US $0.18 |
||
| replacement | |||||
|
2
|
2
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) |
09128-06044-000 |
from US $1.22 |
||
|
3
|
3
08361-35068-000
Nut
|
08361-35068-000 |
— | ||
| replacement | |||||
|
3
|
3
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.80 |
||
|
4
|
4
33850-05301-000 WIRE,STARTER MOTORLead wire, starting motor |
33850-05301-000 |
from US $14.24 |
||
|
5
|
5
31861-06C00-000 CAP,STARTER MOTOR TERMINALCap, starter motor terminal Cap, terminal; |
31861-06C00-000 |
from US $2.13 |
||
|
6
|
6
32800-29B00-000 Rectifier AssyRectifier, regulator Rectifier, regulator; |
32800-29B00-000 |
from US $185.84 |
||
|
7
|
7
09128-06057-000 BOLT(6X20)Bolt (6x20) Screw (6x20); |
09128-06057-000 |
from US $1.12 |
||
|
8
|
8
32900-05300-000 IGNITOR UNITIgniter unit Igniter unit; |
32900-05300-000 |
from US $526.10 |
||
|
9
|
9
33410-05350-000 COIL ASSY,IGNITIONCoil assy, ignition Coil, ignition; |
33410-05350-000 |
from US $88.32 |
||
|
10
|
10
02142-05103-000
Screw 5x10
Screw; |
02142-05103-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.72 |
||
|
11
|
11
33510-22010-000 CAP ASSY,SPARK PLUG |
33510-22010-000 |
from US $10.34 |
||
| replacement | |||||
|
11
|
11
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
12
|
12
33541-24510-000
Seal, spark plug cap
Seal, spark plug; |
33541-24510-000 |
— | ||
| replacement | |||||
|
12
|
12
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug; |
33541-47D00-000 |
from US $4.26 |
||
|
13
|
13
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, hightension cord; |
33542-38B00-000 |
from US $1.52 |
||
