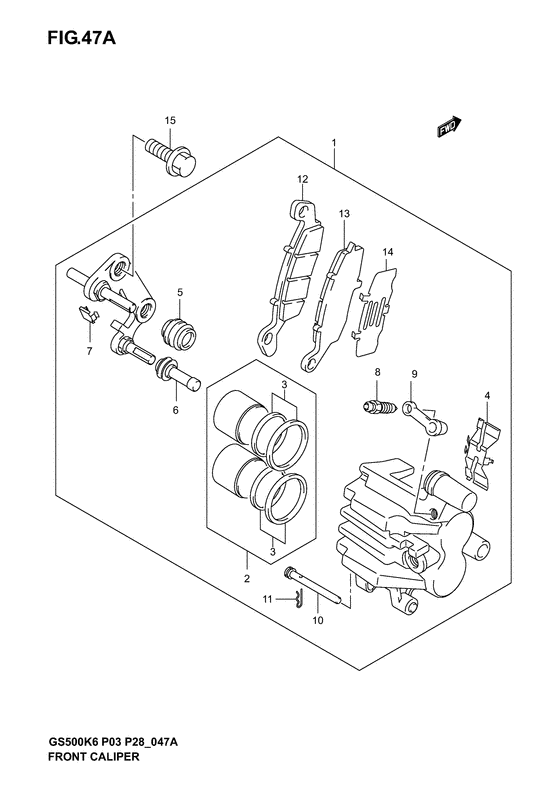

Front caliper (Model k4/k5/k6) Diagram Suzuki GS500
- Year
- 2005
- Model code
- GS500FK5(P3) K5
- Engine Capacity
- 500
- Model
- GS500F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59100-01DA0-999 Caliper assy, front rh |
59100-01DA0-999 |
US $465.38 |
||
| replacement | |||||
|
1
|
1
59100-33D81-999 CALIPER ASSY,FR,R |
59100-33D81-999 |
from US $368 |
||
|
2
|
2
59300-0BE00-000 Piston set |
59300-0BE00-000 |
US $44.50 |
||
|
3
|
3
59300-0BE10-000
Seal set, piston
|
59300-0BE10-000 |
— | ||
|
4
|
4
59115-0BE00-000
Spring
|
59115-0BE00-000 |
— | ||
|
5
|
5
59112-0BE00-000
Boot
|
59112-0BE00-000 |
— | ||
|
6
|
6
59313-0BE00-000 Insulator |
59313-0BE00-000 |
US $7.28 |
||
|
7
|
7
59116-0BE00-000
Guide
|
59116-0BE00-000 |
— | ||
|
8
|
8
59121-0AE00-000 Bleeder |
59121-0AE00-000 |
US $8.77 |
||
| replacement | |||||
|
8
|
8
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $11.76 |
||
|
9
|
9
59122-0AE00-000
Cap
|
59122-0AE00-000 |
— | ||
|
10
|
10
59141-0BE00-000
Pin
|
59141-0BE00-000 |
— | ||
|
11
|
11
69142-0BE00-000 Clip |
69142-0BE00-000 |
US $2.26 |
||
|
12
|
12
59102-33890-000 PAD & SHIM SET |
59102-33890-000 |
US $89.98 |
||
|
13
|
13
59171-33D00-000 SHIM,PADShim, pad; |
59171-33D00-000 |
from US $7.29 |
||
|
14
|
14
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
14
|
14
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
