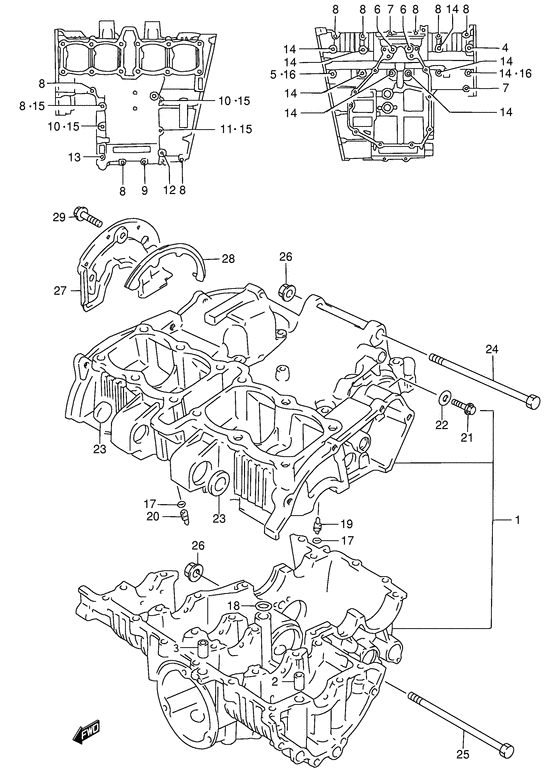

Crankcase Diagram Suzuki GSF400 Bandit
- Year
- 1997
- Model code
- GSF400VV(E30) V
- Engine Capacity
- 400
- Model
- GSF400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-33820-000
Crankcase set
|
11301-33820-000 |
— | ||
|
2
|
2
09206-11017-000 PIN(8.4X11X20)Pin (8.4x11x20) Pin (11x20); |
09206-11017-000 |
from US $2.40 |
||
|
3
|
3
09206-13004-000 PIN(10.4X13X22)Pin (l:22) Pin (13x22); |
09206-13004-000 |
from US $3.69 |
||
|
4
|
4
09103-08239-000
Bolt
Bolt (8x110); |
09103-08239-000 |
— | ||
|
5
|
5
09103-08179-000 BOLT(8X105)Bolt, lh (8x105) Bolt (8x105); |
09103-08179-000 |
from US $6.33 |
||
|
6
|
6
07130-08553-000
Bolt
|
07130-08553-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0855B-000 Bolt |
07130-0855B-000 |
from US $6.49 |
||
|
7
|
7
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
8
|
8
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
8
|
8
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
9
|
9
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
10
|
10
01550-06553-000
Bolt
|
01550-06553-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0655B-000 BoltBolt, hydraulic unit no.2 |
01550-0655B-000 |
from US $0.91 |
||
|
11
|
11
01550-06653-000
Bolt
|
01550-06653-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0665A-000 Bolt |
01550-0665A-000 |
from US $5.07 |
||
|
12
|
12
01550-06703-000
Bolt
|
01550-06703-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0670B-000 Bolt |
01550-0670B-000 |
from US $4.80 |
||
|
13
|
13
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.51 |
||
|
13
|
13
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
14
|
14
09103-08105-000 BOLT(8X95)Bolt (8x95) Bolt (8x95); |
09103-08105-000 |
from US $5.27 |
||
|
15
|
15
09168-06018-000 GASKET(6.2X13X1.2)Gasket, oil check bolt |
09168-06018-000 |
from US $1.06 |
||
|
16
|
16
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
17
|
17
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
18
|
18
09280-13004-000 O-RING (D:1.9,ID:13)O ring (d:1.9,id:13); |
09280-13004-000 |
from US $1.31 |
||
|
19
|
19
09493-80005-000 JET(8)Jet, oil gally mission; |
09493-80005-000 |
from US $11.20 |
||
|
20
|
20
09493-80007-000 JET,OILJet, oil piston; |
09493-80007-000 |
from US $10.52 |
||
|
21
|
21
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
21
|
21
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
22
|
22
09168-06018-000 GASKET(6.2X13X1.2)Gasket, oil check bolt |
09168-06018-000 |
from US $1.06 |
||
|
23
|
23
09241-25005-000 PLUG(OD:25) |
09241-25005-000 |
from US $6.15 |
||
|
24
|
24
09103-10085-000
Bolt 10 x 135
Bolt (10x135); |
09103-10085-000 |
— | ||
| replacement | |||||
|
24
|
24
09103-10142-000 BOLT(10X135)Bolt (10x135) Bolt (10x135); |
09103-10142-000 |
from US $9.67 |
||
|
25
|
25
09103-10135-000
Bolt, l:145
Bolt (10x145); |
09103-10135-000 |
— | ||
| replacement | |||||
|
25
|
25
09103-10241-000 BOLT(10X143)Bolt (10x143) Bolt (10x145); |
09103-10241-000 |
US $45.60 |
||
|
26
|
26
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
26
|
26
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
27
|
27
11317-33D01-000
Cover, breather
|
11317-33D01-000 |
— | ||
|
28
|
28
11318-33D00-000 GASKET,BREATHER COVER |
11318-33D00-000 |
US $18.11 |
||
|
29
|
29
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
