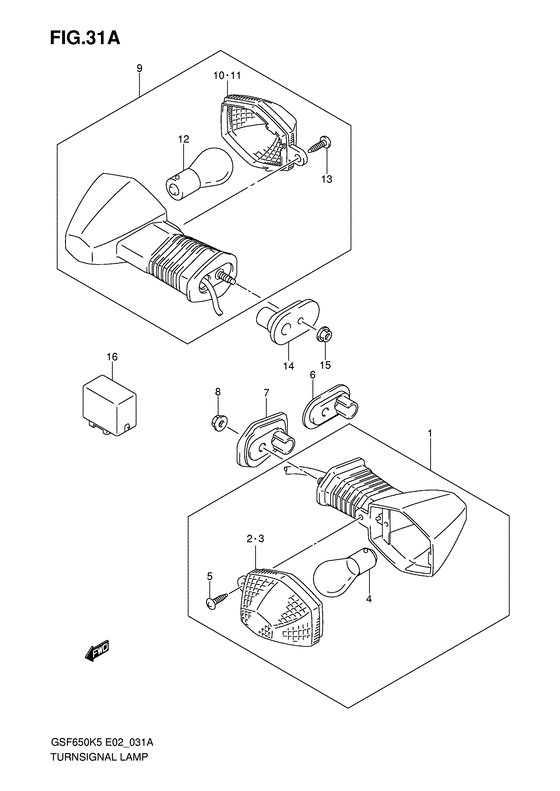

Turnsignal lamp (Model k6) Diagram Suzuki GSF650 Bandit S
- Year
- 2005
- Model code
- GSF650SAK5(E2) K5
- Engine Capacity
- 650
- Model
- GSF650S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-38G40-000 LAMP ASSY,FR TURN SIGNAL,RLamp assy, front turnsignal, rh; |
35601-38G40-000 |
from US $87.40 |
||
|
1
|
1
35602-38G40-000 LAMP ASSY,FR TURN SIGNAL,LLamp assy, front turnsignal, lh; |
35602-38G40-000 |
US $121.81 |
||
|
2
|
2
35612-29FA0-000 LENSLens, rh Lens, rh; |
35612-29FA0-000 |
from US $7.75 |
||
|
3
|
3
35632-29FA0-000 LENSLens, lh Lens, lh; |
35632-29FA0-000 |
from US $9.12 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v 21w); For amber |
09471-12186-000 |
from US $5.65 |
||
|
5
|
5
03242-04163-000
Screw
|
03242-04163-000 |
— | ||
| replacement | |||||
|
5
|
5
03242-0416B-000 SCREW |
03242-0416B-000 |
from US $2.72 |
||
|
6
|
6
35629-31F40-000 PLATE,TURNSIGNAL LAMPPlate, front turn Plate, front turnsignal; Gsf650k6/ak6/uk6/uak6 |
35629-31F40-000 |
from US $2.64 |
||
|
7
|
7
35629-18G00-000 PLATE,FR TURNSIGNALPlate, fr turn Plate, front turnsignal; Gsf650sk6/sak6/suk6/suak6 |
35629-18G00-000 |
from US $2.89 |
||
|
8
|
8
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
9
|
9
35603-29FB0-000 LAMP ASSY,RR TURNSIGNAL,RLamp assy, rear turn, r Lamp assy, rear turnsignal, rh; |
35603-29FB0-000 |
from US $103.20 |
||
|
9
|
9
35604-29FB0-000 LAMP ASSY,RR TURNSIGNAL,LLamp assy, rear turn, l Lamp assy, rear turnsignal, lh; |
35604-29FB0-000 |
US $124.10 |
||
|
10
|
10
35632-31F40-000
Lens, rh
|
35632-31F40-000 |
— | ||
| replacement | |||||
|
10
|
10
35632-29FA0-000 LENSLens, lh |
35632-29FA0-000 |
from US $9.12 |
||
|
11
|
11
35612-31F40-000
Lens, lh
|
35612-31F40-000 |
— | ||
| replacement | |||||
|
11
|
11
35612-29FA0-000 LENSLens, rh |
35612-29FA0-000 |
from US $7.75 |
||
|
12
|
12
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v 21w); For amber |
09471-12186-000 |
from US $5.65 |
||
|
13
|
13
03242-04163-000
Screw
|
03242-04163-000 |
— | ||
| replacement | |||||
|
13
|
13
03242-0416B-000 SCREW |
03242-0416B-000 |
from US $2.72 |
||
|
14
|
14
35629-31F40-000 PLATE,TURNSIGNAL LAMPPlate, front turn Plate, rear turnsignal; |
35629-31F40-000 |
from US $2.64 |
||
|
15
|
15
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
16
|
16
38610-03F00-000
RELAY ASSY,TURNSIGNAL LAMP
Relay assy, turnsignal; |
38610-03F00-000 |
— | ||
| replacement | |||||
|
16
|
16
38610-03F01-000 Relay Assy,turnsignal LampRelay assy, turnsignal; |
38610-03F01-000 |
from US $44 |
||
