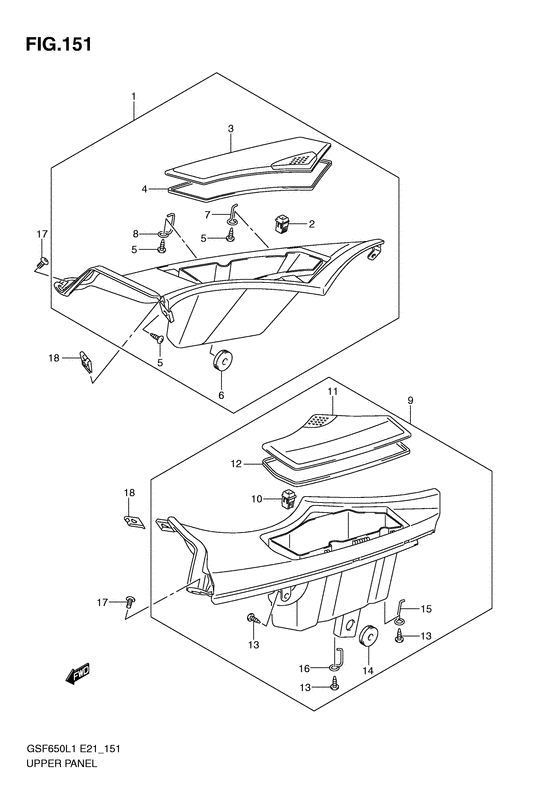

Upper panel (Gsf650sl1 e21) Diagram Suzuki GSF650 Bandit S
- Year
- 2011
- Model code
- GSF650SL1(E21) L1
- Engine Capacity
- 650
- Model
- GSF650S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94420-46H00-000
Panel comp,upper,r
|
94420-46H00-000 |
— | ||
| replacement | |||||
|
1
|
1
94420-46H01-000 PANEL,UPR,R |
94420-46H01-000 |
US $86.40 |
||
|
2
|
2
73170-50A00-000 LOCK,I/P CTR BOXLock, lid |
73170-50A00-000 |
from US $10.40 |
||
|
3
|
3
94423-46H00-000
Lid,upper,r
|
94423-46H00-000 |
— | ||
| replacement | |||||
|
3
|
3
94423-46H01-000 LID,UPR,R |
94423-46H01-000 |
US $8.35 |
||
|
4
|
4
94456-46H00-000 CUSHION,PANEL LID |
94456-46H00-000 |
US $5.59 |
||
|
5
|
5
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
6
|
6
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
7
|
7
94454-46H00-000 HINGE,LID |
94454-46H00-000 |
US $5.26 |
||
|
8
|
8
94553-46H00-000 HINGE,LID |
94553-46H00-000 |
US $5.26 |
||
|
9
|
9
94520-46H00-000
Panel comp,upper,l
|
94520-46H00-000 |
— | ||
| replacement | |||||
|
9
|
9
94520-46H01-000 PANEL,UPR,L |
94520-46H01-000 |
US $86.40 |
||
|
10
|
10
73170-50A00-000 LOCK,I/P CTR BOXLock, lid |
73170-50A00-000 |
from US $10.40 |
||
|
11
|
11
94523-46H00-000
Lid,upper,l
|
94523-46H00-000 |
— | ||
| replacement | |||||
|
11
|
11
94523-46H01-000 LID,UPR,L |
94523-46H01-000 |
US $8.35 |
||
|
12
|
12
94456-46H00-000 CUSHION,PANEL LID |
94456-46H00-000 |
US $5.59 |
||
|
13
|
13
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
14
|
14
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
15
|
15
94454-46H00-000 HINGE,LID |
94454-46H00-000 |
US $5.26 |
||
|
16
|
16
94553-46H00-000 HINGE,LID |
94553-46H00-000 |
US $5.26 |
||
|
17
|
17
09139-06051-000 SCREW(6X10) |
09139-06051-000 |
from US $1.28 |
||
|
18
|
18
09148-05052-000 NUT |
09148-05052-000 |
from US $1.22 |
||
