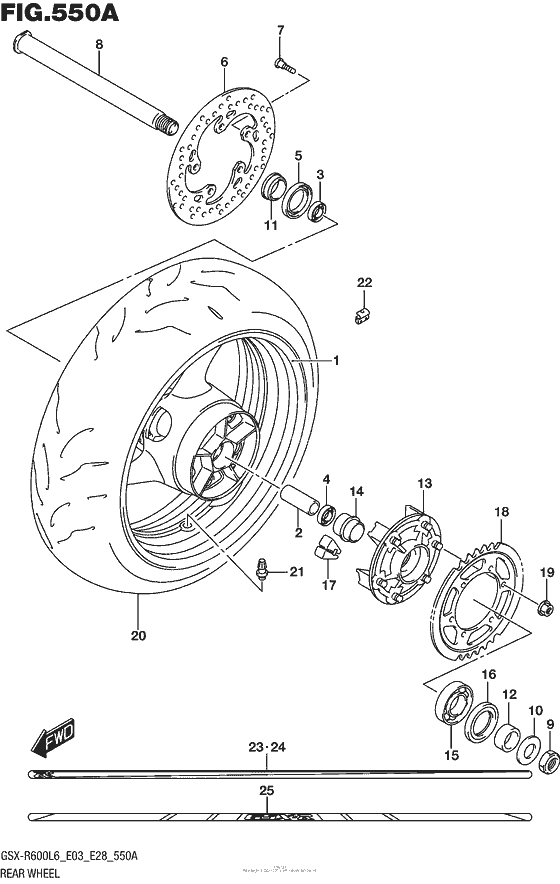

Rear Wheel Diagram Suzuki GSX-R600
- Year
- 2016
- Model code
- GSX-R600L6 (2016)
- Sales region
- USA/ Canada
- Engine Capacity
- 600
- Model
- GSX-R600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-14J00-019 WHEEL,RR(17M/CXMT5.50) |
64111-14J00-019 |
from US $911.68 |
||
|
2
|
2
64731-14J00-000 SPACER,RR WHEEL BEARING |
64731-14J00-000 |
from US $17.48 |
||
|
3
|
3
09262-25061-000 BEARING(25X52X15) |
09262-25061-000 |
from US $19 |
||
|
4
|
4
08123-60057-000 Bearing |
08123-60057-000 |
from US $12.77 |
||
|
5
|
5
09285-32004-000 SEAL,OIL(32X52X7)Seal, rear swgarm outer dust |
09285-32004-000 |
from US $5.62 |
||
|
6
|
6
69211-18G00-000 DISC,RR BRAKE |
69211-18G00-000 |
from US $165.68 |
||
|
7
|
7
09106-08160-000 BOLT(8X21)Bolt, brake disc |
09106-08160-000 |
from US $1.67 |
||
|
8
|
8
64711-14J00-000 AXLE,RR |
64711-14J00-000 |
from US $53.20 |
||
|
9
|
9
09159-22007-000 NUT |
09159-22007-000 |
from US $16.72 |
||
|
10
|
10
09160-22081-000 WASHER(22X35X2) |
09160-22081-000 |
from US $1.37 |
||
|
11
|
11
54751-41G10-000 SPACER,FR AXLE,R |
54751-41G10-000 |
from US $12.77 |
||
|
12
|
12
64751-44G00-000 SPACER,RR AXLE,L |
64751-44G00-000 |
from US $12.92 |
||
|
13
|
13
64610-47H00-000 DRUM,RR SPROCKET |
64610-47H00-000 |
from US $133.76 |
||
|
14
|
14
64733-44G00-000 RETAINER,RR SPROCKET DRUM |
64733-44G00-000 |
from US $11.40 |
||
|
15
|
15
09262-32022-000
BEARING(32X65X17)
|
09262-32022-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-32024-000 Bearing,rr Sprocket Drum |
09262-32024-000 |
from US $24.32 |
||
|
16
|
16
09285-39001-000 SEAL,OIL(39X65X7)Seal, rear sprocket drum oil |
09285-39001-000 |
from US $5.99 |
||
|
17
|
17
64651-47H10-000 ABSORBER,RR HUB SHOCK |
64651-47H10-000 |
from US $8.54 |
||
|
18
|
18
64511-14J00-000 SPROCKET,RR(43T-525) |
64511-14J00-000 |
from US $131.12 |
||
|
19
|
19
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
20
|
20
65110-14J00-000 TIRE,RR |
65110-14J00-000 |
from US $401.12 |
||
|
21
|
21
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
22-1
|
22-1
55411-22H00-000 BALANCER,WHEEL(10G) |
55411-22H00-000 |
from US $2.82 |
||
|
22-2
|
22-2
55412-22H00-000 BALANCER,WHEEL(20G) |
55412-22H00-000 |
from US $2.82 |
||
|
22-3
|
22-3
55413-22H00-000 BALANCER,WHEEL(30G) |
55413-22H00-000 |
from US $2.82 |
||
|
23
|
23
68251-47H00-A29 TAPE,WHEEL FRONT,R |
68251-47H00-A29 |
from US $49.68 |
||
|
24
|
24
68252-47H00-A29 TAPE,WHEEL FRONT,L |
68252-47H00-A29 |
from US $48.35 |
||
|
25
|
25
68251-47H10-BAJ TAPE,WHEEL FR |
68251-47H10-BAJ |
from US $50.42 |
||
