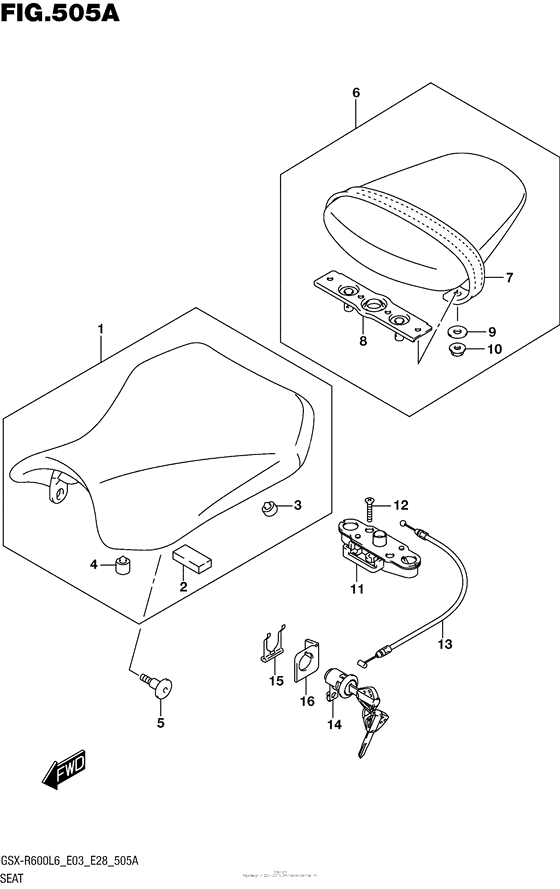

Seat Diagram Suzuki GSX-R600
- Year
- 2016
- Model code
- GSX-R600L6 (2016)
- Sales region
- USA/ Canada
- Engine Capacity
- 600
- Model
- GSX-R600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-14J10-DW2
SEAT ASSY
|
45100-14J10-DW2 |
— | ||
| replacement | |||||
|
1
|
1
45100-14J11-DW2 Seat Assy |
45100-14J11-DW2 |
from US $160.45 |
||
|
2
|
2
45149-37H00-000 CUSHION |
45149-37H00-000 |
from US $3.28 |
||
|
3
|
3
09321-10011-000 CUSHION |
09321-10011-000 |
from US $1.52 |
||
|
4
|
4
09321-10034-000 CUSHION |
09321-10034-000 |
from US $11.17 |
||
|
5
|
5
09139-06193-000 SCREW(6X20) |
09139-06193-000 |
from US $1.82 |
||
|
6
|
6
45300-14J10-P3H
SEAT ASSY,PILLION
|
45300-14J10-P3H |
— | ||
| replacement | |||||
|
6
|
6
45300-14J11-P3H Seat Assy,pillion |
45300-14J11-P3H |
US $225.39 |
||
|
7
|
7
45180-14J10-P3H BAND ASSY,SEAT |
45180-14J10-P3H |
from US $21.53 |
||
|
8
|
8
45290-47H01-000 STRIKER |
45290-47H01-000 |
from US $18.33 |
||
|
9
|
9
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper |
09160-06088-000 |
from US $0.91 |
||
|
10
|
10
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
45220-47H00-000 BRACKET,SEAT SUPPORT |
45220-47H00-000 |
from US $69.55 |
||
|
12
|
12
02122-0630A-000 SCREWScxrew, retainer |
02122-0630A-000 |
from US $0.68 |
||
|
13
|
13
45280-14J00-000 CABLE,SEAT LOCK |
45280-14J00-000 |
from US $11.92 |
||
|
14
|
14
95700-14810-000 LOCK SET,SEAT |
95700-14810-000 |
from US $42.56 |
||
|
15
|
15
45289-11F00-000 PLATE,SEAT LOCK ASSY |
45289-11F00-000 |
from US $2.58 |
||
|
16
|
16
45288-14F00-000 GUIDE,SEAT LOCK CABLEGuide, cable |
45288-14F00-000 |
from US $2.46 |
||
