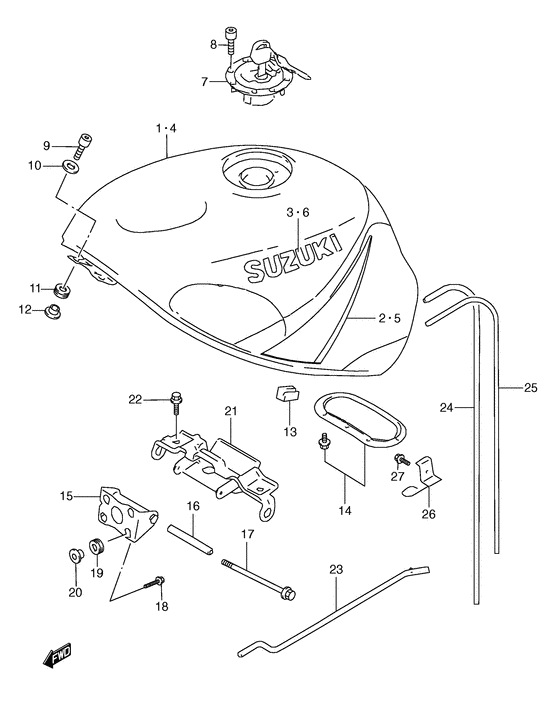

Fuel tank (Model x) Diagram Suzuki GSX-R600
- Year
- 1999
- Model code
- GSX-R600X(E2) X
- Engine Capacity
- 600
- Model
- GSX-R600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-34E90-Y7L
TANK ASSY,FUEL(BLACK)
Tank assy, fuel (black); For y7l |
44100-34E90-Y7L |
— | ||
|
1
|
1
44100-34E90-Y9H
TANK ASSY,FUEL(YELLOW)
Tank assy, fuel (yellow); For y9h |
44100-34E90-Y9H |
— | ||
|
2
|
2
68110-34E30-M6M
TAPE SET,FUEL TANK
For y7l |
68110-34E30-M6M |
— | ||
|
2
|
2
68110-34E30-M6N TAPE SET,FUEL TANKTape set, fuel tank For y9h |
68110-34E30-M6N |
US $57.78 |
||
|
3
|
3
68111-12C00-Y2D
Emblem (silver)
Emblem (silver); For y7l |
68111-12C00-Y2D |
— | ||
| replacement | |||||
|
3
|
3
68111-12C30-Y2D EMBLEMEmblem (silver); For y7l |
68111-12C30-Y2D |
US $13.43 |
||
|
3
|
3
68111-12C00-Y7L
Emblem (black)
Emblem (black); For y9h |
68111-12C00-Y7L |
— | ||
| replacement | |||||
|
3
|
3
68111-12C30-Y7L EMBLEM,FUEL TANKEmblem (black); For y9h |
68111-12C30-Y7L |
US $15.75 |
||
|
4
|
4
44100-34E80-L99
Tank assy,fuel
For l99 |
44100-34E80-L99 |
— | ||
| replacement | |||||
|
4
|
4
44110-33E01-13L
TANK ASSY,FUEL(13L)
For l99 |
44110-33E01-13L |
— | ||
|
5
|
5
68110-34E30-M6H
TAPE SET,FUEL TANK
|
68110-34E30-M6H |
— | ||
|
6
|
6
68111-12C00-0JW
Emblem (white)
Emblem (white); |
68111-12C00-0JW |
— | ||
| replacement | |||||
|
6
|
6
68111-12C30-0JW EMBLEM,FUEL TANKEmblem (white); |
68111-12C30-0JW |
from US $20.11 |
||
|
7
|
7
44200-33820-000 CAP SET,FUEL TANKCap set, fuel tank |
44200-33820-000 |
from US $146.46 |
||
|
8
|
8
09106-05017-000 BOLT(5X20)Bolt, cap; |
09106-05017-000 |
from US $1.06 |
||
|
9
|
9
09139-06029-000 SCREW(6X25)Screw, front Bolt, front; |
09139-06029-000 |
from US $1.67 |
||
|
10
|
10
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
11
|
11
09320-09009-000 CUSHION |
09320-09009-000 |
from US $1.76 |
||
|
12
|
12
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.07 |
||
|
13
|
13
44541-33E00-000
CUSHION,FUEL TANK SIDE
|
44541-33E00-000 |
— | ||
| replacement | |||||
|
13
|
13
44541-33E01-000 Cushion,fuel Tank Side |
44541-33E01-000 |
US $48 |
||
|
14
|
14
44590-02820-000
PACKING SET,FUEL PUMP
|
44590-02820-000 |
— | ||
| replacement | |||||
|
14
|
14
44590-02821-000 Packing Set,fuel Pump |
44590-02821-000 |
from US $55.76 |
||
|
15
|
15
44530-33E00-000
Bracket comp,fu
Bracket, no.1; |
44530-33E00-000 |
— | ||
| replacement | |||||
|
15
|
15
44530-33E01-000 BRACKET,FUEL TANK NO.1Bracket, no.1; |
44530-33E01-000 |
from US $28.80 |
||
|
16
|
16
44561-33E10-000 SPACER,FUEL TANK RRSpacer, joint Spacer, joint; |
44561-33E10-000 |
from US $13.43 |
||
|
17
|
17
01550-08953-000
Bolt
Bolt, joint; |
01550-08953-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0895B-000 BoltBolt, crankcase (8x95) Bolt, joint; |
01550-0895B-000 |
US $24.70 |
||
|
17
|
17
01550-0895A-000 BOLTBolt, joint; |
01550-0895A-000 |
from US $1.82 |
||
|
18
|
18
09116-06152-000 BOLT(6X20) |
09116-06152-000 |
from US $1.38 |
||
|
19
|
19
09320-08001-000
CUSHION
|
09320-08001-000 |
— | ||
| replacement | |||||
|
19
|
19
09320-08527-000 Cushion |
09320-08527-000 |
US $15.50 |
||
|
20
|
20
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.07 |
||
|
21
|
21
44550-33E00-000
Bracket comp,fu
Bracket, no.2; |
44550-33E00-000 |
— | ||
|
22
|
22
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
22
|
22
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
|
23
|
23
44574-33E01-000 STAY,FUEL TANKStay, fuel tank Stay, fuel tank; |
44574-33E01-000 |
from US $15.33 |
||
|
24
|
24
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->80); |
09352-50823-600 |
— | ||
| replacements | |||||
|
24
|
24
44420-44AR0-000
HOSE SET,FUEL
Hose, breather (l:600->80); |
44420-44AR0-000 |
— | ||
|
24
|
24
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->80); |
09352-50005-600 |
from US $4.10 |
||
|
25
|
25
09352-70103-600
HOSE(7X10.2X600)
Hose, water drain (l:600->70); |
09352-70103-600 |
— | ||
| replacement | |||||
|
25
|
25
09352-70104-600 Hose(7X10.2X600)Hose, water drain (l:600->70); |
09352-70104-600 |
from US $5.28 |
||
|
26
|
26
44480-33E00-000
Guide comp,drai
|
44480-33E00-000 |
— | ||
| replacement | |||||
|
26
|
26
44480-33E0V-000
GUIDE,DRAIN HOSE
|
44480-33E0V-000 |
— | ||
|
27
|
27
01550-06123-000
Bolt
Bolt, guide; |
01550-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BOLTBolt, clamp Bolt, guide; |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BOLTBolt, guide; |
01550-0612A-000 |
from US $0.76 |
||
