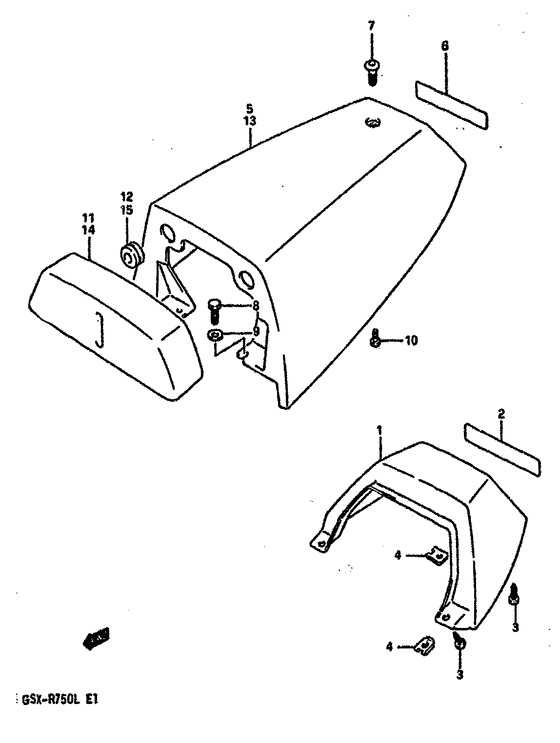

Seat tail cover (Model l) Diagram Suzuki GSX-R750
- Year
- 1990
- Model code
- GSX-R750L(J/K/L) L
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45510-17C42-0NE
Cover comp,seat
Cover,seat tail (blue); For 3sl |
45510-17C42-0NE |
— | ||
| replacement | |||||
|
1
|
1
45511-17C00-000
COVER,SEAT TAIL
Cover,seat tail (blue); For 3sl |
45511-17C00-000 |
— | ||
|
1
|
1
45510-17C42-019
Cover,seat tail (black)
For 3rz |
45510-17C42-019 |
— | ||
| replacement | |||||
|
1
|
1
45511-17C00-000
COVER,SEAT TAIL
For 3rz |
45511-17C00-000 |
— | ||
|
1
|
1
45510-17C42-33J
Cover,seat tail (black)
Cover,seat tail (black); For 3cg |
45510-17C42-33J |
— | ||
| replacement | |||||
|
1
|
1
45511-17C00-000
COVER,SEAT TAIL
Cover,seat tail (black); For 3cg |
45511-17C00-000 |
— | ||
|
2
|
2
68166-04700-0JW EMBLEM,BOX SEAT TAILEmblem (white) Emblem (white); For 0ne,019 |
68166-04700-0JW |
from US $3.20 |
||
|
2
|
2
68166-04700-742
EMBLEM
Emblem (silver); For 33j |
68166-04700-742 |
— | ||
|
3
|
3
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
4
|
4
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
5
|
5
45500-17840-0NE
Box set,seat tail (blue)
Opt,for 3sl |
45500-17840-0NE |
— | ||
|
5
|
5
45500-17840-019
Box set,seat tail (black)
Opt,for 3rz |
45500-17840-019 |
— | ||
| replacements | |||||
|
5
|
5
09320-12031-000 CUSHIONOpt,for 3rz |
09320-12031-000 |
from US $1.92 |
||
|
5
|
5
46220-17C10-58R
BACKREST,SEAT(BLACK)
Opt,for 3rz |
46220-17C10-58R |
— | ||
|
5
|
5
68166-04700-0JW EMBLEM,BOX SEAT TAILEmblem (white) Opt,for 3rz |
68166-04700-0JW |
from US $3.20 |
||
|
5
|
5
45500-17840-33J
Box set,seat tail (black)
Opt,for 3cg |
45500-17840-33J |
— | ||
| replacements | |||||
|
5
|
5
09320-12031-000 CUSHIONOpt,for 3cg |
09320-12031-000 |
from US $1.92 |
||
|
5
|
5
46220-17C10-58R
BACKREST,SEAT(BLACK)
Opt,for 3cg |
46220-17C10-58R |
— | ||
|
5
|
5
68166-04700-0JW EMBLEM,BOX SEAT TAILEmblem (white) Opt,for 3cg |
68166-04700-0JW |
from US $3.20 |
||
|
6
|
6
68166-04700-0JW EMBLEM,BOX SEAT TAILEmblem (white) Emblem (white); Opt,for 0ne,019 |
68166-04700-0JW |
from US $3.20 |
||
|
6
|
6
68166-04700-742
EMBLEM
Emblem (silver); Opt,for 3cg |
68166-04700-742 |
— | ||
|
7
|
7
09139-06030-000 SCREW(6X16)Screw (6x16) Screw,upper; Opt |
09139-06030-000 |
from US $1.82 |
||
|
8
|
8
01107-06206-000
Bolt, front
Opt |
01107-06206-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0620A-000 BOLTOpt |
01500-0620A-000 |
from US $0.76 |
||
|
9
|
9
08322-21066-000
Washer
Opt |
08322-21066-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHEROpt |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
02142-05128-000
Screw
Opt |
02142-05128-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-05127-000 SCREWOpt |
02142-05127-000 |
from US $0.80 |
||
|
11
|
11
46220-17C10-5NN BACKREST,SEATBackrest,seat (blue) Backrest,seat (blue); Opt,for 0ne |
46220-17C10-5NN |
US $64.48 |
||
|
11
|
11
46220-17C10-58R
BACKREST,SEAT(BLACK)
Backrest,seat (black); Opt,for 019,33j |
46220-17C10-58R |
— | ||
|
12
|
12
09320-12031-000 CUSHIONOpt |
09320-12031-000 |
from US $1.92 |
||
|
13
|
13
45500-17C42-33J
Box assy,seat tail (black)
Box assy,seat tail (black); Model l e24,special version |
45500-17C42-33J |
— | ||
|
14
|
14
46220-17C10-58R
BACKREST,SEAT(BLACK)
Backrest,seat (black); Model l e24,special version |
46220-17C10-58R |
— | ||
|
15
|
15
09320-12031-000 CUSHIONModel l e24,special version |
09320-12031-000 |
from US $1.92 |
||
