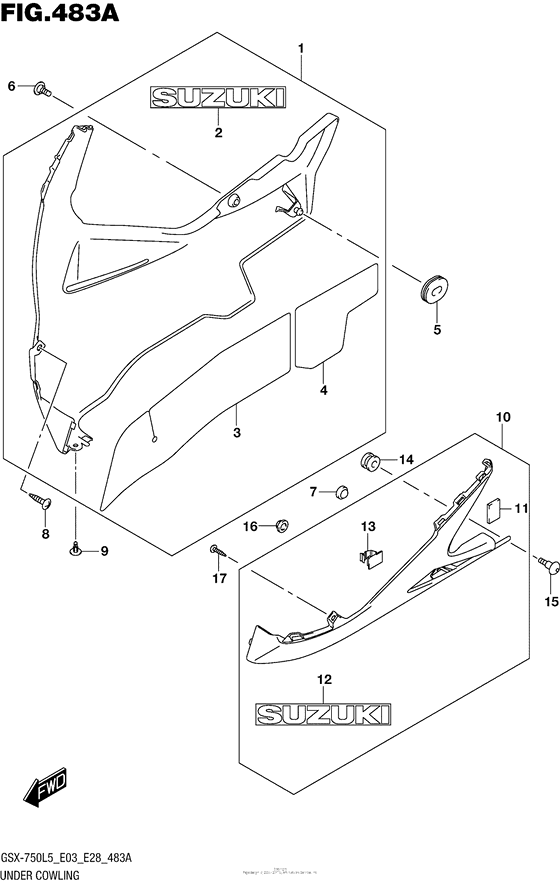

Under Cowling Diagram Suzuki GSX-R750
- Year
- 2015
- Model code
- GSX-R750L5
- Sales region
- USA/ Canada
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94470-14J00-RB5 COWLING,UNDER,R(WHITE) |
94470-14J00-RB5 |
from US $358.79 |
||
|
1
|
1
94470-14J00-YSF COWLING,UNDER,R(BLUE) |
94470-14J00-YSF |
from US $272.32 |
||
|
2
|
2
68181-33C20-019 EMBLEM,SUZUKI |
68181-33C20-019 |
from US $15.96 |
||
|
2
|
2
68181-33C20-YWW EMBLEM,SUZUKI,R(WHITE) |
68181-33C20-YWW |
from US $15.35 |
||
|
3
|
3
94479-14J00-000 SHIELD,UNDER COWL HEAT,R |
94479-14J00-000 |
from US $7.75 |
||
|
4
|
4
94479-14J10-000 SHIELD,UNDER COWL HEAT,R |
94479-14J10-000 |
from US $5.17 |
||
|
5
|
5
94478-14J00-000 CUSHION,UNDER COWLING,R |
94478-14J00-000 |
from US $2.28 |
||
|
6
|
6
94476-14J00-000 SCREW,UNDER COWL,R |
94476-14J00-000 |
from US $1.98 |
||
|
7
|
7
09321-10018-000 CUSHION |
09321-10018-000 |
from US $2.13 |
||
|
8
|
8
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.68 |
||
|
9
|
9
94479-35F00-000 CLIPClip, lower |
94479-35F00-000 |
from US $1.52 |
||
|
10
|
10
94480-14J00-RB5 COWLING,UNDER,L(WHITE) |
94480-14J00-RB5 |
US $244.76 |
||
| replacement | |||||
|
10
|
10
94480-14J01-RB5 Cowling,under,l |
94480-14J01-RB5 |
from US $286.23 |
||
|
10
|
10
94480-14J00-YSF
COWLING,UNDER,L(BLUE)
|
94480-14J00-YSF |
— | ||
| replacement | |||||
|
10
|
10
94480-14J01-YSF Cowling,under,l |
94480-14J01-YSF |
from US $231.84 |
||
|
11
|
11
47161-10FA0-000 CUSHION,BRACKET NO.1 |
47161-10FA0-000 |
US $3.64 |
||
|
12
|
12
68181-33C20-019 EMBLEM,SUZUKI |
68181-33C20-019 |
from US $15.96 |
||
|
12
|
12
68181-33C20-YWW EMBLEM,SUZUKI,R(WHITE) |
68181-33C20-YWW |
from US $15.35 |
||
|
13
|
13
09403-14311-000 CLAMP |
09403-14311-000 |
from US $8.53 |
||
|
14
|
14
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.06 |
||
|
15
|
15
09139-06190-000 BOLT(6X20) |
09139-06190-000 |
from US $1.82 |
||
|
16
|
16
09321-10018-000 CUSHION |
09321-10018-000 |
from US $2.13 |
||
|
17
|
17
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.68 |
||
