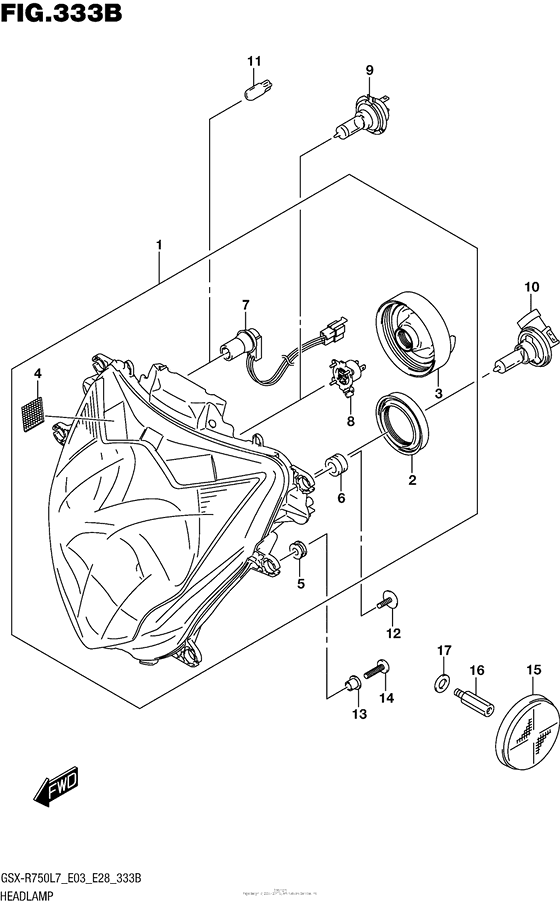

Headlamp (Gsx-R750L7 E28) Diagram Suzuki GSX-R750
- Year
- 2017
- Model code
- GSX-R750L7
- Sales region
- USA/ Canada
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-14J31-999 HEADLAMP ASSY |
35100-14J31-999 |
from US $401.12 |
||
|
2
|
2
35179-01H00-000 COVER,SOCKETSocket, cover |
35179-01H00-000 |
from US $12.81 |
||
|
3
|
3
35179-58J00-000 COVER,SOCKET |
35179-58J00-000 |
from US $8.28 |
||
|
4
|
4
44572-02F01-000 FASTENER |
44572-02F01-000 |
from US $8.10 |
||
|
5
|
5
09320-07014-000 CUSHION |
09320-07014-000 |
from US $6.24 |
||
|
6
|
6
09320-09039-000
CUSHION
|
09320-09039-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-09059-000 Cushion,silencer Cover |
09320-09059-000 |
from US $1.67 |
||
|
7
|
7
36118-29G51-000 CORD ASSY |
36118-29G51-000 |
from US $14.70 |
||
|
8
|
8
37175-14J00-000 ADAPTER ASSY |
37175-14J00-000 |
from US $7.84 |
||
|
9
|
9
09471-12222-000 BULB(12V65W,H9) |
09471-12222-000 |
from US $41.04 |
||
|
10
|
10
09471-12188-000 BULB(12V55W/H7/PX26D/PHILIPS)Bulb (12v55w,h7) |
09471-12188-000 |
from US $18.59 |
||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.77 |
||
|
12
|
12
09136-05062-000 SCREW(5X15)Screw, shield |
09136-05062-000 |
from US $0.91 |
||
|
13
|
13
09169-05018-000 WASHERWasher, vacuum valve |
09169-05018-000 |
from US $4.45 |
||
|
14
|
14
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
15
|
15
35950-14A11-000 REFLEX REFLECTOR ASSY,FR SIDE |
35950-14A11-000 |
from US $9.58 |
||
|
16
|
16
09119-06109-000 BOLT |
09119-06109-000 |
from US $6.69 |
||
|
17
|
17
09160-08043-000 WASHER(8.5X18X1)Washer, heat switch |
09160-08043-000 |
from US $1.06 |
||
