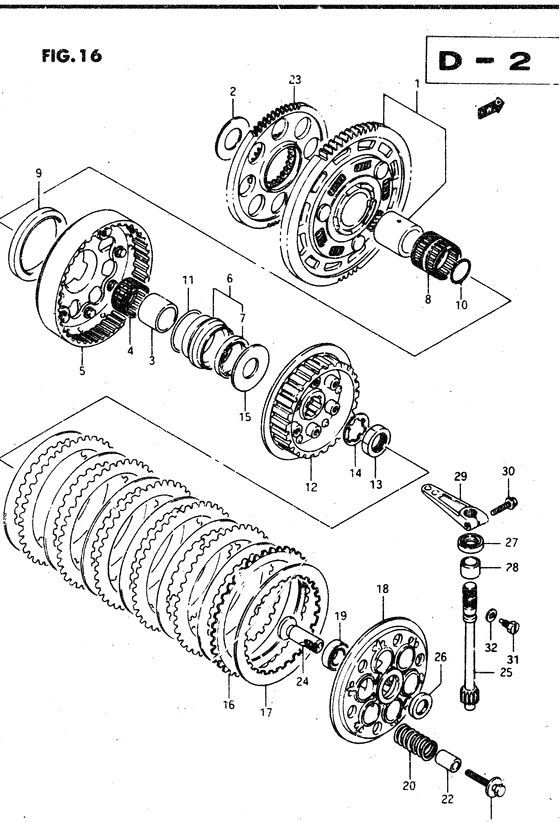

Clutch Diagram Suzuki GSX-R750
- Year
- 1986
- Model code
- GSX-R750RG G
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-27850-000
Gear assy, primary driven
Nt:75 |
21200-27850-000 |
— | ||
| replacement | |||||
|
1
|
1
21200-27851-000
New Genuine Part
Nt:75 |
21200-27851-000 |
— | ||
|
2
|
2
09160-25062-000
Washer
|
09160-25062-000 |
— | ||
| replacement | |||||
|
2
|
2
09160-25067-000
Washer (25x54x2.5)
|
09160-25067-000 |
— | ||
|
3
|
3
09160-25086-000
Spacer (25x35x25)
Spacer (25x35x25); |
09160-25086-000 |
— | ||
|
4
|
4
21253-27A50-000
Rn 35x40x17 brg
Bearing (35x40x17); |
21253-27A50-000 |
— | ||
|
5
|
5
21220-27A31-000
Housing,clutch
|
21220-27A31-000 |
— | ||
|
6
|
6
21250-27A30-000
Collar
|
21250-27A30-000 |
— | ||
| replacement | |||||
|
6
|
6
21250-27A31-000
COLLAR,CLUTCH HOUSING HOLDER
|
21250-27A31-000 |
— | ||
|
7
|
7
09283-35023-000 SEAL,OIL(35X45X6)Oil seal (35x43x6) |
09283-35023-000 |
US $10.73 |
||
|
8
|
8
09263-35017-000 BEARING(35X40X35.8)Bearing (35x40x35.8) Bearing (35x40x35.8); |
09263-35017-000 |
from US $54.74 |
||
|
9
|
9
09282-62001-000
SEAL,OIL(62X82X7)
|
09282-62001-000 |
— | ||
|
10
|
10
09280-25006-000
O ring
|
09280-25006-000 |
— | ||
| replacement | |||||
|
10
|
10
09280-25007-000
O RING(D:1.25,ID:24.5)
|
09280-25007-000 |
— | ||
|
11
|
11
09280-46001-000
O ring
|
09280-46001-000 |
— | ||
| replacement | |||||
|
11
|
11
09280-46002-000 O RING(D:2.4,ID:46.0) |
09280-46002-000 |
from US $14.16 |
||
|
12
|
12
21410-27032-000
Hub, sleeve
|
21410-27032-000 |
— | ||
|
13
|
13
09140-22010-000
Nut
|
09140-22010-000 |
— | ||
|
14
|
14
09167-22010-000 WASHER,LOCKLock washer Washer, lock; |
09167-22010-000 |
from US $6.26 |
||
|
15
|
15
09160-22015-000
Washr 22x51x2.5
|
09160-22015-000 |
— | ||
|
16
|
16
21441-27A50-000
Plate,clutch Drive
|
21441-27A50-000 |
— | ||
|
17
|
17
21451-27A31-000
Plate, driven
|
21451-27A31-000 |
— | ||
| replacement | |||||
|
17
|
17
21451-27A32-000 Plate,clutch driven |
21451-27A32-000 |
US $149.41 |
||
|
18
|
18
21460-27A32-000
Disk, pressure
|
21460-27A32-000 |
— | ||
| replacement | |||||
|
18
|
18
21460-27A33-000
Disk,clutch pressure
|
21460-27A33-000 |
— | ||
|
19
|
19
21413-27A51-000
Bearing
|
21413-27A51-000 |
— | ||
| replacement | |||||
|
19
|
19
09262-15028-000 BEARING(15X28X7)Bearing (15x28x7) |
09262-15028-000 |
US $31.46 |
||
|
20
|
20
09440-19019-000
Spring
|
09440-19019-000 |
— | ||
| replacements | |||||
|
20
|
20
09440-19019-XC0 SPRING |
09440-19019-XC0 |
US $31.30 |
||
|
20
|
20
09440-20020-000 SPRING |
09440-20020-000 |
from US $2.72 |
||
|
21
|
21
09116-06137-000
Bolt (6x35)
|
09116-06137-000 |
— | ||
| replacements | |||||
|
21
|
21
09117-06037-XC0
BOLT(6X35)
|
09117-06037-XC0 |
— | ||
|
21
|
21
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.22 |
||
|
22
|
22
09180-06186-000 SPACER(6.2X12.6X21)Spacer, throttle lever no.2 |
09180-06186-000 |
from US $8.93 |
||
|
23
|
23
22721-27A01-000
Gear,generator drive (nt:34/68)
|
22721-27A01-000 |
— | ||
| replacement | |||||
|
23
|
23
22721-27A03-000 GEAR,GENERATOR DRIVEGear, generator drive |
22721-27A03-000 |
from US $270.56 |
||
|
24
|
24
23121-27A30-000
Rack, release
|
23121-27A30-000 |
— | ||
| replacement | |||||
|
24
|
24
23121-27A31-000
Rack,clutch release
|
23121-27A31-000 |
— | ||
|
25
|
25
23261-27A30-000
Pinion, release
|
23261-27A30-000 |
— | ||
| replacement | |||||
|
25
|
25
23261-27A31-000
New Genuine Part
|
23261-27A31-000 |
— | ||
|
26
|
26
09282-15006-000 SEAL,OIL(15X25X4)Oil seal (15x25x4) Oil seal (15x25x4); |
09282-15006-000 |
from US $3.46 |
||
|
27
|
27
09283-13002-000 SEAL,OIL(13X23X5)Oil seal (13x23x5) Oil seal (13x23x5); |
09283-13002-000 |
from US $3.39 |
||
|
28
|
28
23141-42000-000
Bush,clutch rel
|
23141-42000-000 |
— | ||
|
29
|
29
23271-27A30-000
Arm clutch rele
|
23271-27A30-000 |
— | ||
|
30
|
30
01547-06167-000 BOLTBolt, fastener bracket |
01547-06167-000 |
from US $0.80 |
||
|
31
|
31
23142-42000-000
BOLT
|
23142-42000-000 |
— | ||
|
32
|
32
09164-06006-000 WASHERWasher (6.3x12x1) Washer; |
09164-06006-000 |
from US $1.06 |
||
