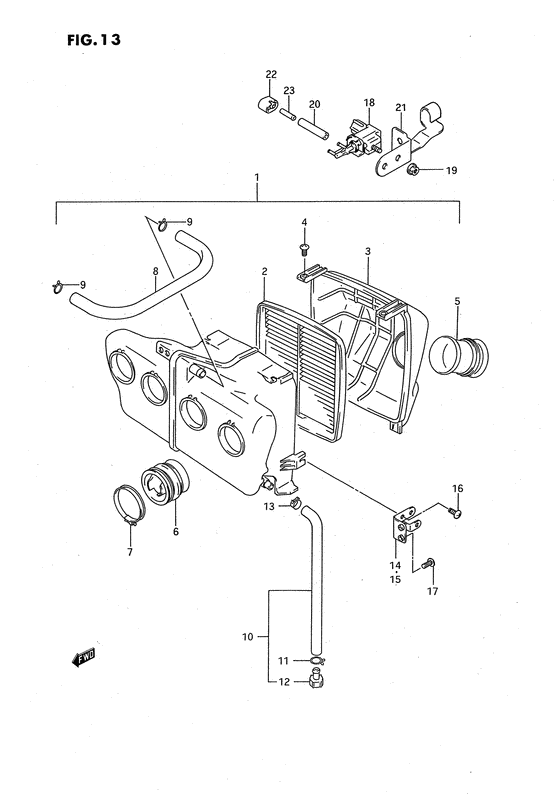

Air cleaner Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-17E90-000
Cleaner assy, air
|
13700-17E90-000 |
— | ||
|
2
|
2
13780-17E00-000 FILTER,AIRFilter, air; |
13780-17E00-000 |
from US $45.60 |
||
|
3
|
3
13740-17E02-000 CAP,AIR CLEANERCap, air cleaner; |
13740-17E02-000 |
from US $38.27 |
||
|
4
|
4
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
5
|
5
13891-17E00-000 TUBE,INLET |
13891-17E00-000 |
from US $16.60 |
||
|
6
|
6
13881-17E90-000
TUBE,OUTLET
|
13881-17E90-000 |
— | ||
|
7
|
7
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
8
|
8
13853-17E00-000
Tube, breather
|
13853-17E00-000 |
— | ||
| replacement | |||||
|
8
|
8
13853-46E00-000 TUBE,BREATHER |
13853-46E00-000 |
US $30.59 |
||
|
9
|
9
13824-48B10-000
Clip
|
13824-48B10-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-16401-000 CLIP |
09401-16401-000 |
from US $1.92 |
||
|
10
|
10
13870-21458-000
TUBE,DRAIN
Tube, drain; |
13870-21458-000 |
— | ||
| replacement | |||||
|
10
|
10
13870-21459-000 Tube,drainTube, drain; |
13870-21459-000 |
from US $12.92 |
||
|
11
|
11
13824-18910-000 CLIP |
13824-18910-000 |
from US $1.18 |
||
| replacement | |||||
|
11
|
11
09401-11101-000 CLIP |
09401-11101-000 |
from US $1.07 |
||
|
12
|
12
13877-38A00-000 STOPPER,DRAINPlug, drain Stopper, drain; |
13877-38A00-000 |
from US $2.80 |
||
|
13
|
13
09401-13413-000 ClipClip, air hose no.1 |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
13
|
13
09401-13417-000 CLIP |
09401-13417-000 |
from US $1.60 |
||
|
14
|
14
13760-17E00-000
Bracket comp,ai
|
13760-17E00-000 |
— | ||
|
15
|
15
13770-17E00-000
Bracket comp,ai
|
13770-17E00-000 |
— | ||
|
16
|
16
02142-06123-000
Screw
Screw; |
02142-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
18
|
18
13160-22D00-000
VALVE ASSY,MAIN AIR SOLENOID
Valve assy, solenoid; |
13160-22D00-000 |
— | ||
|
19
|
19
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
09352-40703-600
HOSE(4X7X600)
Hose (4x7x600); L:600->0 |
09352-40703-600 |
— | ||
| replacement | |||||
|
20
|
20
09352-40706-600 Hose(4X7X600)Hose (4x7x600); L:600->0 |
09352-40706-600 |
from US $2.91 |
||
|
21
|
21
13165-17E00-000
Bracket, solenoid valve
|
13165-17E00-000 |
— | ||
|
22
|
22
13180-22D10-000 FILTER,SOLENOID VALVE |
13180-22D10-000 |
US $2.72 |
||
|
23
|
23
09364-04004-000 UNIONUnion, panel Union, filter; |
09364-04004-000 |
from US $15.05 |
||
