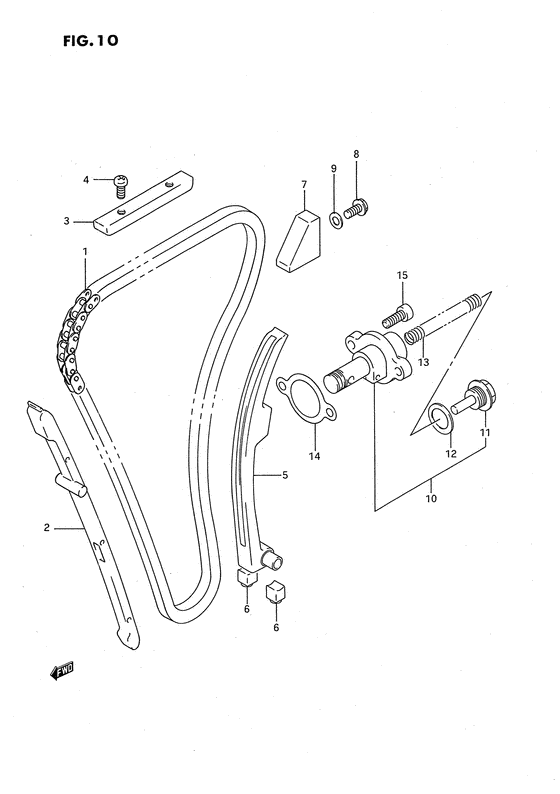

Cam chain Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12760-17E00-000
Chain, cam shaft drive
|
12760-17E00-000 |
— | ||
| replacement | |||||
|
1
|
1
12760-17E01-000 CHAIN,CAMSHAFT DRIVEChain, cam shaft drive |
12760-17E01-000 |
US $172.71 |
||
|
2
|
2
12771-17E00-000 GUIDE,CAM CHAIN NO.1Guide, cam chain no.1 |
12771-17E00-000 |
from US $43.06 |
||
|
3
|
3
12782-18E00-000 GUIDE,CAM CHAIN NO.2Guide, cam chain no.2 |
12782-18E00-000 |
from US $52.62 |
||
|
4
|
4
02112-05103-000
Bolt
Screw; |
02112-05103-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0510A-000 SCREWScrew; |
02112-0510A-000 |
from US $0.76 |
||
|
5
|
5
12810-17E01-000
TENSIONER,CAM CHAIN
|
12810-17E01-000 |
— | ||
|
6
|
6
12814-34200-000 CUSHION,CAM CHAIN TENSIONER |
12814-34200-000 |
from US $7.75 |
||
|
7
|
7
12791-17E01-000 GUIDE,CAM CHAIN NO.3Guide, cam chain no.3 |
12791-17E01-000 |
from US $43.79 |
||
|
8
|
8
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Washer; |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
12830-26D12-000
Adjuster assy, tensioner
|
12830-26D12-000 |
— | ||
| replacement | |||||
|
10
|
10
12830-46E00-000 ADJUSTER ASSY,TENSIONERAdjuster assy, tensioner |
12830-46E00-000 |
US $272.32 |
||
|
11
|
11
12834-27A00-000 PLUG |
12834-27A00-000 |
from US $20.42 |
||
|
12
|
12
12832-27A00-000 GASKET |
12832-27A00-000 |
from US $5.26 |
||
|
13
|
13
12833-26D10-000 SPRING |
12833-26D10-000 |
from US $4.34 |
||
|
14
|
14
12837-27A10-000 GASKET,TENSIONER ADJUSTERGasket, adjuster; |
12837-27A10-000 |
from US $6.38 |
||
|
15
|
15
09106-06082-000 BOLT(6X22)Bolt (6x23); |
09106-06082-000 |
from US $3.20 |
||
